Patio Life Lift-and-Slide Patio Doors

A timber patio door that travels sideways, with configurable glazing and styling

Patio Life lift-and-slide doors

Configure Patio Life lift-and-slide doors in pine or oak, with optional outside aluminium cladding, insulating glazing in 2-pane or 3-pane form, and selectable colour and handle.

Material

Pine or oak, each also available with exterior aluminium cladding

Glazing

2- or 3-pane insulating glass

Hardware

Roto Frank

Warranty

5 years

01

Planning daily movement around a sliding leaf

Opening a Patio Life door sends its movable leaf laterally toward the side instead of rotating it across an indoor or outdoor area. A swing clearance is therefore unnecessary. Even so, plot the door position and its travel at the start of the design process, together with furniture locations and the routes people will use.

Map the full journey through the doorway rather than viewing each side in isolation. Note where someone approaches from inside and where the route continues across the patio. This makes it easier to position a dining table, lounge seating and busy walkways without obstructing access. A sliding format helps with spatial organization, but the doorway still needs to be planned for the particular room.

Usage frequency is another useful guide. For a main patio entrance, handle reach and an intuitive path may deserve priority; an opening used less often may be chosen chiefly for its outlook. Because the handle can be selected, assess it with the visible fittings already present in the room. Its location and appearance can then feel intentional rather than incidental.

First test the movement against the floor plan and expected circulation. Once that works, bring the wood, exterior cladding, insulating glass, bar layout, finish colour and handle into one specification. An enquiry should identify the intended access route and the visual considerations that are most important for the project.

02

Choosing timber and the exterior metal finish

Pine and oak give Patio Life two different timber foundations. Evaluate the chosen wood beside floors, wall finishes, cabinetry and adjoining window frames, since those surroundings shape how it will appear. Pine often suits a lighter, quieter palette, while oak may provide a stronger wood presence. The final effect also depends on the applied colour and the specific interior rather than the species name alone.

An exterior aluminium skin can be added to either timber option. This lets the inside retain its wood-based character while the outside presents aluminium to the façade. Review the two elevations independently, then consider them as one assembly. Outside, useful references include the façade colour, roofing details, metal elements and existing window finishes.

The component sections change when cladding is added. In the all-timber version, the outer frame is 181 × 45 mm; the aluminium-clad version uses 191 × 45 mm. The stated leaf section is 78 × 68 mm without cladding and 88 × 78 mm with it. These figures describe individual parts of the assembly. They are neither the finished door dimensions nor a prescribed size for the structural opening.

Additional construction details are Roto Frank hardware, silicone glazing seals and installation holes with a 14 mm diameter. The door is CE-marked. Retain that mark in the product record, but do not treat it as proof that a Canadian project satisfies locally applicable requirements. Give the unaltered component information to the project designer and confirm the required documentation with the authority having jurisdiction, because the applicable code and approval route depend on the province or territory and municipality.

05

Measure the opening and review its connections

Accurate planning starts with the real structural opening and the construction around it. Record width and height, but also document the wall build-up, installation position and transitions to the interior floor, outdoor surface and façade. The frame and leaf sections listed earlier describe the product parts only; they cannot be substituted for ordering dimensions or field measurements of the opening.

On the plan, show where the leaf travels and how people will reach the doorway. Check its relationship to kitchen units, dining furniture, seating and fixed interior elements. Repeat the exercise outside with planters, patio furniture and primary paths. Although there is no hinged swing to accommodate, both sides still require an unobstructed approach.

Develop the outside view with adjoining windows, façade openings and established sill and lintel levels. The timber-only and aluminium-clad versions have different stated frame and leaf sections, so identify the selected construction early. This keeps drawings, measurements and discussions tied to one version instead of inadvertently mixing component data.

Ask the project professionals to verify the recorded measurements and the proposed building connections. Plans, elevations and photographs can clarify the setting during an enquiry, but a photograph is not a reliable measuring tool. Label every recorded dimension by what it represents. Before work proceeds, identify the province or territory and municipality, then ask the local permit office which zoning, opening-alteration or building-approval steps apply. Publication of a national model code does not make one edition automatically operative in every part of Canada.

06

Coordinate finishes, handle and façade

The listed configuration includes choices for both colour and handle. A finish can blend with surrounding elements or act as a deliberate contrast. Compare it with flooring, walls, existing window frames and built-in furniture instead of judging it from a small standalone image. On the exterior, relate it to the façade, nearby metalwork and the aluminium cladding when that option is selected.

A handle is simultaneously a touchpoint and part of the visible composition. It can relate to nearby handles, taps or fittings without forcing every metal finish to be identical. Aim for a clear design relationship. Since the door uses Roto Frank hardware, confirm the handle within the actual Patio Life specification rather than copying a detail shown on another model.

Wood species, applied colour and outside cladding contribute in different ways. Pine or oak establishes the underlying material, the colour affects how it sits with nearby finishes, and aluminium changes the exterior-facing surface. Where the room and façade have contrasting characters, review each side on its own and then make sure the complete selection remains coherent.

The 4th design layer is the bar layout. Clear glazing gives visual priority to the glass, horizontal divisions establish a repeated line, and combined decorative bars produce a tighter grid. Set the preferred degree of subdivision before finalizing colour and handle. That sequence separates the main compositional choice from the smaller finishing details.

07

Compare other opening formats

Choose Patio Life when the brief calls for lateral leaf travel and a 2-frame composition. Bloomcabin also offers sliding doors fitted with GU hardware, but those belong to a different product group. They use their own frame and leaf sections and have black rubber seals. Compare the documented construction of each system rather than assuming that all products described as sliding doors share the same technical details.

A project requiring outward movement should be assessed against the hinged patio-door range instead. That range includes 1-leaf and 2-leaf doors, together with heritage-style designs, each with product-specific hardware, materials, dimensions and patterns. A 2-leaf composition can suit a traditionally divided elevation, but its hinged action is fundamentally different from the lateral Patio Life mechanism.

Outward-folding doors provide another distinct movement pattern, using connected leaves and layouts developed for the folding action. A conventional exterior door may be preferable where the brief calls for a single outward-opening element, with glazing or solid panels according to the selected version. Base the comparison on movement, material and the desired amount of visual division.

Glazing does not always need to function as an entrance. Rectangular and round fixed windows provide light and outlook without opening. Although they cannot replace a patio doorway, they can contribute stationary glazed areas beside operable elements. Check the timber, exterior cladding, glass and bar options against the specification for each window rather than transferring Patio Life details to it.

Begin this comparison by assigning a purpose to every opening. Identify the doorway that must provide access, the movement that fits the plan and the glazed areas intended only for light or views. Review decorative patterns after those functional decisions. This approach avoids selecting an attractive elevation whose mechanism conflicts with normal circulation. Heritage-style 1-leaf patio door, outward-opening, 2-leaf patio door, outward-opening, Heritage-style 2-leaf outward-opening patio door, Outward-opening exterior door, Sliding doors, Outward-opening folding doors, Fixed-glazed windows, Fixed-glazed round windows.

08

Prepare a Patio Life project enquiry

Begin with a concise account of the project and recorded measurements for the proposed opening. Identify the desired construction as pine, oak, pine with exterior aluminium cladding or oak with exterior aluminium cladding. Then state whether the insulating unit should have 2 panes or 3 panes and name the bar layout under consideration.

Include the preferred colour and handle. Mention any façade alignments, nearby window divisions or visible materials that should influence the selection, and attach useful views if they are available. Use the exact bar-layout designation so that a glass-dividing version is not mistaken for one using decorative bars.

Bloomcabin's 5-year commercial warranty for windows and doors covers Patio Life lift-and-slide doors. The 5-year term describes that commercial warranty only and is not a statement about the duration or scope of statutory rights. Once the project information is complete, we can organize the requested features and answer remaining product questions using the available materials, glass builds, patterns, colours and handles.

What movement does a Patio Life door use?

Its operable leaf travels laterally toward the side rather than rotating inward or outward on hinges.

Which timber choices can I specify?

The available woods are pine and oak. Exterior aluminium cladding may be added to either option.

What insulating-glass builds can I choose?

Select an insulating unit with 2 panes or 3 panes. Each build is argon-filled and incorporates CHR warm-edge spacers plus a heat-reflective coating.

How can the glazing be divided visually?

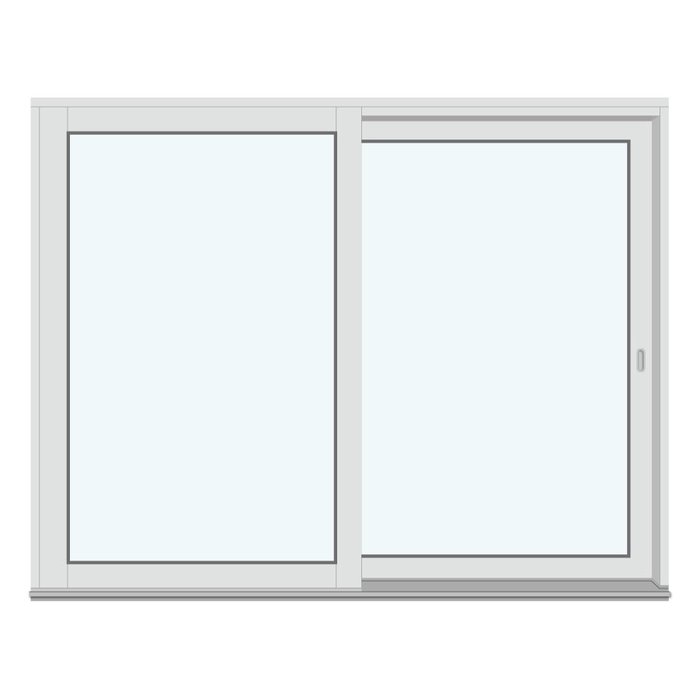

The range includes a plain 2-frame arrangement, horizontal glass-dividing bars and decorative layouts that combine horizontal and vertical bars.

Are colour and handle configurable?

Yes. Specify both details with reference to the selected wood, insulating glass and bar layout.

Who supplies the hardware, and what seals the glass?

Roto Frank supplies the hardware. Silicone is specified at the glazing seals.

Is CE marking stated for this model?

Yes. The Patio Life lift-and-slide door is CE-marked. Canadian project acceptance and locally required documentation must still be confirmed separately.

What is the commercial warranty period?

Patio Life is included in Bloomcabin's 5-year commercial warranty for windows and doors. That period does not define the duration or scope of any statutory rights.

Start your Patio Life door enquiry

To assess Patio Life for your opening, send the recorded project dimensions and describe the intended design. Include the timber, insulating-glass build, colour, handle and bar layout you are considering. We can then help organize those available choices into a clear product specification.
