Buying a Pergola for an L-Shaped Terrace
Pergola buying guide
Buying a pergola for an L-shaped terrace starts with the shape of the usable floor, not the terrace's overall length and width. Two connected arms can call for different coverage, and a footprint that fits the outline may still obstruct the turn, door access or furniture. Measure both sections, decide which use matters most and compare each candidate's documented footprint with a scale plan. This guide covers layout, clearances, fixing questions and the details worth confirming before you order.
Map both arms before comparing pergola sizes
Buying a pergola for an L-shaped terrace is easier when you draw the space from above instead of treating it as one large rectangle. Sketch both arms, the inside corner and the outside edges; label the length and clear width of each arm. Mark where the terrace meets the house, and include steps, rails, drains, wall returns and permanent planters. If the inside angle is not square or an edge changes direction, show that rather than smoothing it into a neat corner. The overall length and width of the terrace's enclosing rectangle can include space that is not actually usable. A candidate footprint has to be compared with the real outline.
Measure the full extent and clear width of each arm, repeating the width at both ends if it varies. Write down how you took each measurement, such as wall to edge or wall to obstacle, and use the same units throughout. Note any offset or change in direction so you can place a proposed pergola consistently on the sketch. Keep the basic terrace outline separate from furniture marks, which you can add later. If you have an older plan, check its dimensions against the space as it is now. A reliable working drawing gives you a fair basis for comparing footprints instead of relying on a rough estimate or a product photograph.
Choose which part of the terrace needs coverage
Before comparing listings, decide what job the pergola should do on this terrace. You might want a defined dining space near the house, a seating area at the far end, or a structure over the section you use most while leaving the other arm open. Rank those uses instead of treating every square metre as equally valuable. The preferred position could be on the longer arm, but only if it leaves the turn and the route to the other end clear. Decide how much of each arm needs to sit beneath the structure; a purpose-led area gives you a sensible target size and can prevent choosing a larger footprint simply because it seems to cover more.

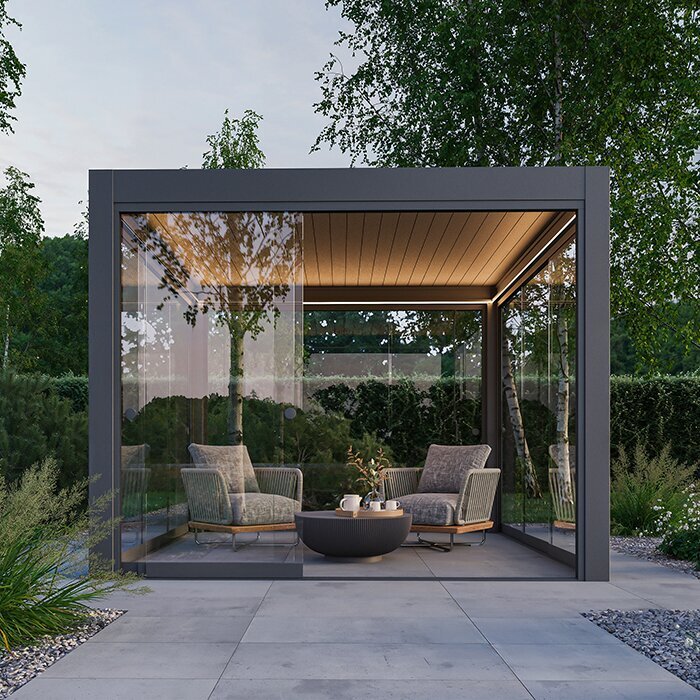

On your plan, mark the area you would like beneath the pergola, then note the boundaries it cannot cross. Compare that zone with each candidate's stated footprint and support positions, not with the apparent size of a product image. For example, you can use the Bloomcabin pergola listing as one page to check against your drawing; its name alone does not tell you whether its dimensions suit either arm. If a measurement you need is not shown, record it as an unanswered question instead of filling the gap with an estimate. This keeps your shortlist focused on the terrace you have, rather than an imagined version of it.
Compare one-arm and two-area layouts
One option is to cover a single arm and leave the other as an open extension of the terrace. If a candidate has a footprint that works for the longer arm, place its outline over the area where people will sit or eat, then check what remains uncovered near the corner. The shorter arm might be a better position if it is closer to the house or contains the furniture you use most. Compare both possibilities on the same drawing. A product's footprint does not have to follow every turn in the paving; it needs to fit the chosen area without making the rest of the terrace harder to use.
Covering both arms can make two units or a more complex arrangement seem attractive, but check the product documentation before assuming separate structures can be joined, aligned or placed close together. Each would take space of its own, and the junction could leave a gap or put supports where a route turns. If you plan to add a second unit later, confirm that the exact products and spacing are documented as compatible; do not infer compatibility from similar names or images. Compare a separate Bloomcabin pergola page with other candidates on its published details. If an arrangement is not documented, treat it as a question for the supplier or installer, not as a custom feature already included.
Keep furniture and everyday routes clear
Furniture can determine whether a footprint works better than the terrace's outer measurements. Draw your table, chairs and other seating to scale, allowing for chairs to be pulled out and for people to pass behind them. Mark doors and gates with their opening direction, along with the route used to reach steps or the far arm. The inside turn is one place where a support or furniture corner could narrow that route. Measure the clear passage between the supports shown in the product drawing and the furniture in use. Do not count the area beneath the pergola as fully practical if a post would sit where people need to move.
A simple ground test can reveal a tight fit before you buy: mark the candidate's outer footprint with temporary markers, then set out the furniture or full-size outlines. Include the space needed to sit down, stand up and move around, not just the table top or chair legs when tucked in. If product drawings show support positions, mark those too; if not, ask for a plan rather than guessing. Use the Bloomcabin product page as a reference only after checking which dimensions it actually publishes. An arrangement that looks balanced on paper can still leave the everyday path awkward, so check the route from the house to both arms.
Measure the inside corner and check support positions
Pay particular attention to the inside corner, where the two arms meet. Record the distance from the corner along each boundary, as well as the available depth across each arm. If the angle is irregular, measure the geometry directly rather than drawing a square corner by assumption. Note any wall projection, step, drain or change in paving at the junction. Then compare the proposed footprint with both legs of the L: an outline that fits along one side may cover the corner differently from what you expect, or extend into an area you wanted to keep open. A diagram with fixed reference points makes these differences easier to see before you choose a size.
Where a pergola has supports, their positions matter as well as its overall outline. Check the product drawing for the distance between supports and their relation to the outer edges, then plot those points on your terrace plan. A support may conflict with a drain, paving joint, step, edge or route even when the overall dimensions appear to fit. Do not move a support, cut a component or assume the structure can be repositioned unless the manufacturer's instructions allow it. If a support would sit near an edge or on an uncertain base, ask a qualified installer to assess the location. Treat the further Bloomcabin pergola page like any other candidate: use published drawings, if available, rather than a photograph to judge the corner.
Check headroom, openings and fixed features
Footprint alone is not enough if the structure has to sit below eaves, beside a window or close to an external light. Measure the vertical space at the intended position and mark features above the terrace, including gutters, downpipes, soffits, vents and wall-mounted fittings. Compare those figures with the product's overall height and any stated clearance; check how the supplier defines each measurement rather than treating them as interchangeable. A small change in position to clear an obstruction can alter how much of the short arm is covered. Record the closest point on your plan instead of judging height from a ground-level product image.
Check the moving parts and access points around the proposed position. Open relevant doors and windows fully, and compare their swing with the support locations. Keep access to thresholds, drains and fittings that may need attention, and note where the terrace changes level. Do not plan to conceal a feature that still needs access or assume a support can pass in front of it. If clearance guidance or a relevant drawing is missing, ask for that information before ordering. This matters particularly when a pergola is intended to sit close to a house wall or another fixed structure, where a small change in placement could affect the usable area.
Consider light and exposure in both arms
Think about light separately for each arm. Observe which areas get direct sun at the times you expect to use the terrace, and note when the house, buildings or trees cast shade. The L-turn can make the two connected zones feel different; a position that suits a meal may not suit an evening seating area. If shade is important to your buying decision, check what the product documentation says about its overhead arrangement and what remains open around the edges. Do not assume a pergola creates the same shade across the full plan at every time of day, or that a product photograph shows conditions at your address.
Consider rain and wind exposure at the intended position, not only at the terrace's more sheltered side. One arm may be beside the house while the other is more open; note where rain reaches the surface and where runoff already goes. A pergola is not automatically a fully weatherproof cover, and product descriptions may differ in how they describe the overhead design or drainage. Look for explicit information on intended use and performance. If it is unclear, ask the supplier or a qualified installer rather than relying on a product name. You can assess the other Bloomcabin pergola listing in the same way, using only what its page and supporting documents state.
Confirm the surface and support requirements
The visible terrace surface does not establish what lies beneath it or whether it suits the support or fixing requirements of a particular product. Note whether each part of the L sits over paving, concrete, decking or another surface, and flag changes in level, repaired areas, joints and edges. Check the pergola's stated requirements against that construction, but do not infer suitability from a flat-looking finish. If the documentation does not explain what is needed, request that information before purchase. A qualified installer can assess the surface and proposed locations, including whether the planned supports work with the terrace as built.
If a shortlisted design is intended to attach to a building, its position must also work with the wall, openings and any services near the terrace. If it relies on supports at the terrace edge, have the edge and underlying construction checked rather than assuming the visible paving is enough. These questions depend on the product and the site, so ask for installation requirements and have a qualified professional confirm the proposed approach. This Bloomcabin listing is a product page to compare, not evidence that your wall or terrace is a suitable fixing point. Keep any answer with your measured plan; if the support positions cannot be reconciled with the site, compare a different documented layout.
Compare product dimensions on the same basis
Put candidate measurements into a side-by-side table instead of comparing a single headline size. Record overall width and projection, total height, usable clearance and support positions where these are provided. Check whether each figure refers to the outer edge, the overhead area or support centres; compare like with like. For an L-shaped terrace, note how much of each arm would sit beneath the pergola and how much clear floor would remain, rather than comparing total area alone. If a detail is absent, mark it as unknown and ask for a dimensioned drawing. The information on that Bloomcabin pergola product can be assessed using the same table; its name or image is not a measurement.
Use one scale on your plan and place each verified footprint onto it. Check clearances at the inside corner, outer perimeter, doors and furniture, then note any position change needed to place the intended area beneath the structure. Keep the proposed location as well as the product size in your notes: a footprint can fit within the boundary yet sit awkwardly against the dining area or a route. Confirm the exact product and size on the order page, and check that the dimensions apply to the selected configuration. If a drawing uses a term you cannot interpret, ask what it includes instead of assuming an overhang, support location or clearance.
Confirm installation and delivery details before ordering
Before ordering, resolve the details that could change your decision: overall dimensions, support positions, height, installation method and whether the proposed layout is permitted for the product. Ask for missing information and keep the answer with your plan; an image or general description is not a substitute for an installation drawing. If you are considering an arrangement made from more than one product, confirm directly that the exact components and spacing are documented for that use. Do not assume a product can be altered, joined or mounted differently to fit the angle. For a candidate such as another Bloomcabin pergola product page, base the choice on its documented details and the exact version selected.
Finally, consider how the order will reach the terrace. Measure the access route from the delivery point, including gates, corridors, stairs, tight turns and door openings. Ask whether the seller can provide package dimensions and weights if these affect carrying or storage. Confirm what is included, how assembly is described, and whether the stated installation requirements can be met on site. If access or a fixing question remains unresolved, pause before placing the order rather than planning around an assumption. The strongest choice is the layout that fits the measured terrace, supports the activity you value most and leaves the rest of the L-shaped space practical to use.
Frequently asked questions
How should I measure an L-shaped terrace for a pergola?
Draw each arm separately and note its clear width and length, along with the inside corner, outer edges, doors and fixed obstacles. Measure again where widths change. Then plot the pergola's stated footprint and support positions to scale; the overall rectangle around the terrace is not the same as its usable area.
Can one pergola cover both arms?
Only if the product's documented footprint suits the actual terrace plan. An L-shaped space does not mean a single pergola has an L-shaped footprint, so compare one-arm coverage with any arrangement intended to cover both. Do not assume separate units can be joined or altered; check compatibility with the supplier.
Should I cover the longer or shorter arm?
Choose according to how you use the terrace, not length alone. Mark the furniture and routes in both arms, then compare which position gives your main activity a practical area without obstructing the inside turn or access to the rest of the terrace.
Which pergola dimensions should I compare?
Check the stated overall width, projection and height, plus usable clearance and support positions where these are provided. Confirm what each measurement refers to, such as the outer edge or support centres. Plot the verified footprint on your plan and ask for any missing dimensions.
What should I check on the terrace before ordering?
Check the surface and proposed support locations against the product's installation requirements, and have a qualified installer assess any uncertainty about the base or fixing method. Also measure access for delivery and assembly, and confirm package details with the supplier if they affect your route.
An L-shaped terrace does not have to be covered in its entirety for a pergola to earn its place. The better buying choice comes from a measured footprint that serves a clear use, fits around the inside corner and leaves routes and remaining floor practical. Compare documented dimensions and support requirements with your plan, then resolve any installation or access questions before placing the order. That gives you a sound basis for choosing a layout, rather than paying for a size that looks right only in a product image.
