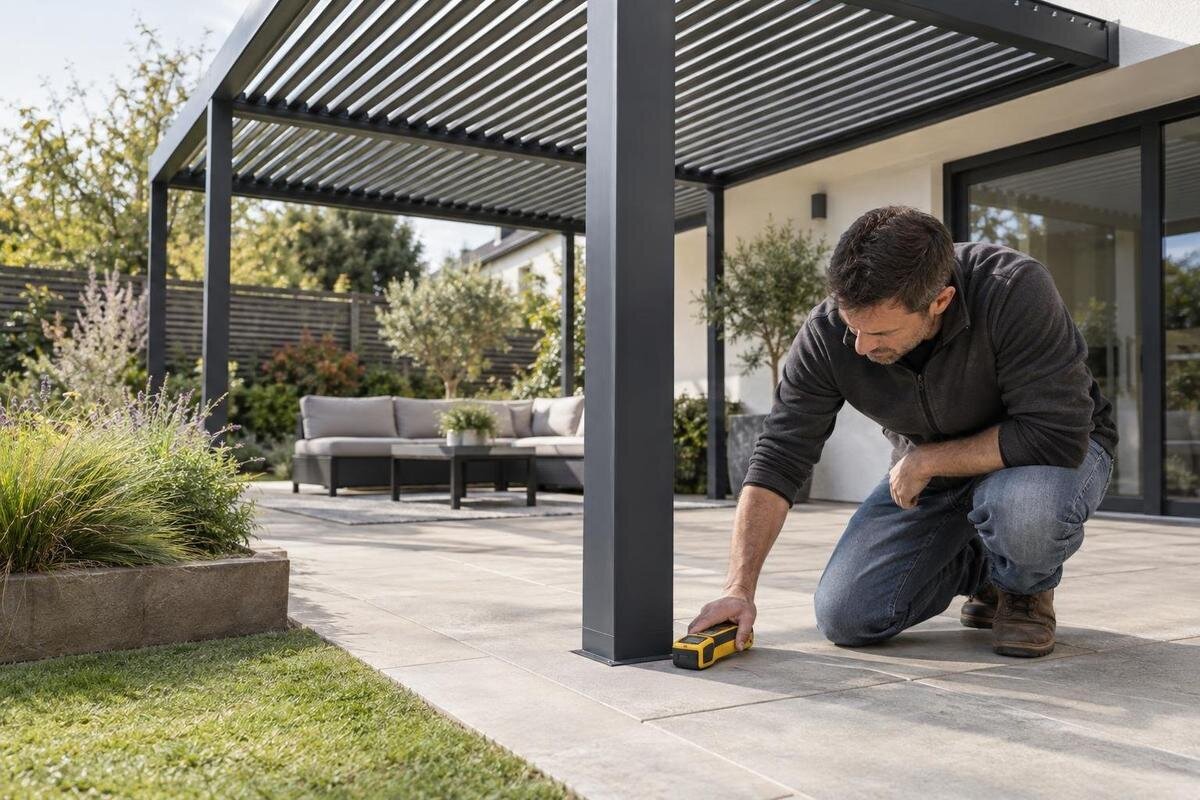

Hidden Pipes and Cables: Check Before Pergola Drilling
Pergola site planning
Before drilling or excavating for a pergola, check the proposed post and anchor positions against every known or suspected service route. A garden plan alone is not enough: records can be incomplete, and a clear-looking area may contain later-installed pipework or cabling. Reviewing service records, arranging suitable on-site detection and comparing the findings with the model-specific anchoring plan helps expose conflicts while the layout can still be changed.
Why service checks come before anchor positions
An anchor position also defines where work will penetrate the ground, paving, slab or wall. If a pipe, cable or drain is found only after the pergola layout has been agreed, the installer may need to stop while the supports are redesigned. Drilling before these checks can leave an unnecessary hole or damage a service. A visual inspection cannot establish that a route is clear: services may cross between the house and a shed, follow a boundary or run beneath paving, while later alterations may be absent from older plans. Checking first is part of setting out the pergola, not a final glance before drilling. It also gives the owner, locator and installer a shared basis for decisions.
Set a provisional outline from the model you are considering, then ask for the matching setting-out and anchoring information. The Bloomcabin Bioclimatic Pergola listing identifies a model listed from 9 to 24 m²; that range can help identify the footprint under discussion, but it does not give post centres or fixing positions. Note the particular size or configuration being considered and have the supplier or installer confirm which drawing applies. A photograph or overall product dimension is not a setting-out plan. Keep the footprint provisional until service findings and the proposed anchoring arrangement have been reviewed together.
What service records can and cannot tell you
Gather available information from the property file, utility or network operators, previous builders and contractors who carried out garden work, as well as any earlier location surveys. Useful material may include as-built plans, drainage layouts, service connection drawings, invoices, photographs taken before paving was laid and notes about repairs. Each record may cover only the work its author knew about; a network plan, for example, may not include a private garden-lighting cable, a feed to a shed or a drain altered during landscaping. Ask what area the drawing covers and when it was prepared. Keep recollections separate from measured records rather than presenting both as equally certain.
Check the date, scale, orientation, symbols and reference point on each drawing before transferring anything to the site plan. Match visible covers, inspection chambers, meters and points where services enter or leave a building, but treat these as clues rather than proof of the route between them. If the proposal is wall-mounted, identify the model with the Bloomcabin Wall-Mounted Pergola page and ask its supplier or installer for the applicable fixing information. A property service plan will not show concealed runs within that wall. Mark missing or uncertain information as unknown; drawing a straight line between two known points does not make the intervening route confirmed.
Survey the whole area affected by the work
Define the survey area around all work that could disturb the site, not just the centre of each post. On the provisional plan, show the proposed anchor points and the foundation outlines indicated by the design, along with drilled wall fixings, paving to be lifted, excavation access and any planned routes for services. If lighting, power or drainage is being planned separately, include those routes too; do not assume they are part of the pergola. The relevant design determines the foundation geometry, so do not add guessed dimensions. A narrow survey around post centres can miss a service beneath a trench, access route or other work area.
Show likely routes from visible connection points to their destinations, including paths that cross the work area even if they do not pass beneath an anchor. For the Bloomcabin Pergola, confirm the exact model and intended footprint before the survey is scoped. Give the locator the current site drawing so the survey is based on the planned installation rather than a broad model description. Explain every planned penetration and where paving or other surfaces may be opened. If the footprint or service routes change after detection, update the plan and ask whether further investigation is needed. This gives the survey a defined area and purpose rather than leaving the locator to guess what the installation will involve.
Use the exact pergola anchoring drawing
Ask for dimensioned, model-specific setting-out information before fixing positions are finalised. It should distinguish the overall footprint from post centres and anchor positions, and make clear which details apply to the proposed connection and surface. Have the supplier or installer identify the relevant approved anchoring drawing; the person responsible for the structural assessment must confirm that it suits the actual substrate. Do not infer drilling points from a product image, a generic brochure view or a similar-sized pergola. Give the locator the same drawing version that the installer will use, so that site marks can be checked against the correct positions rather than an earlier or approximate layout.
When considering the Bloomcabin Bioclimatic Pergola, ask the supplier or installer for the drawing that matches the model and configuration being considered. Send that drawing with a site plan showing all proposed penetrations, then ask for survey findings to be referenced to fixed points rather than a rough sketch. The installer should also explain what substrate evidence and structural assessment support the proposed fixing arrangement, particularly where paving may cover a slab or fill. A drawing defines what needs to be checked; it does not prove that the surface is suitable or free of services. Keep the model, drawing version and date together so that the locator and installer are working from the same information.
Arrange on-site detection for buried services
Ask a competent service-locating specialist to examine the defined work area before final anchor positions are agreed. Provide the records, marked footprint, proposed holes and any routes for associated work; point out areas that are inaccessible or have changed recently. Depending on the site and the services being sought, a specialist may choose electromagnetic locating, ground-penetrating radar or a combination of approaches. These are examples, not a universal recipe: ground, surface construction, material, depth and access can all affect what a method detects. If you are considering the wall-mounted model, include its proposed fixing zone in the survey brief and ask whether separate wall scanning is needed. A result showing no detected services from one method is not proof that every service is absent.
Before accepting the findings, ask what was surveyed, which methods were used and where the survey had limitations. The report or site plan should distinguish a route recorded from existing information from one detected on site, and explain any uncertainty in its position. Ask the specialist to state depth estimates only where they can be supported, with the limitations attached. Services that are non-metallic, abandoned, poorly documented or difficult to access may need a different approach or further investigation; do not assume a standard sweep has resolved them. If a route remains uncertain near a proposed fixing, leave that area unresolved until the locator and installer agree how to proceed.
Check concrete, paving and walls before drilling
A search for buried services does not automatically answer what may be concealed in a wall or concrete slab. Cables or pipes can follow routes associated with indoor fittings or previous renovations, and paving may cover construction that is not visible from the surface. Before approving any fixing that drills into a wall or slab, arrange a check suited to that material and the exact drilling zone. Give the person carrying it out relevant drawings and explain what is on both sides of a wall where that information is available. If a suspected service may be part of an electrical or plumbing installation, ask the relevant qualified trade professional to identify it rather than inferring its route from a socket, tap or other fitting.
Do not treat a visual clue or a general-purpose detector as clearance for a specific fixing. Ask the person undertaking the check to explain what the method can establish in that surface and what remains uncertain. Use the drawing for the selected Bloomcabin Pergola model to identify the planned ground penetrations, and scope a separate slab or wall check if the work also involves drilling there. If the relevant area cannot be checked adequately, pause the drilling decision and ask the installer or designer to consider a revised arrangement.
Overlay service findings with the anchor plan
Ask for survey findings in a format that can be compared directly with the pergola setting-out drawing. The result should identify its reference points and survey limits, and distinguish routes taken from records from those detected on site. It should also make clear where a line is approximate or where its position or depth is uncertain. Confirm what any colour mark or symbol means before work starts; paint on paving can fade, be obscured or be moved. If the surveyor provides an accuracy range or other qualification, keep it with the plan instead of treating a drawn line as an exact measurement. The installer needs enough information to identify each proposed fixing relative to the service findings.
Overlay the agreed anchor positions and foundation outlines on the survey, then have apparent conflicts reviewed before any drilling or excavation. For the selected bioclimatic model, ask the installer and locator to resolve an overlap using the same current drawings. Do not invent a clearance distance around a marked service: ask the relevant specialist to define any exclusion area or further check required for that site. Treat a possible route with no confirmed position as an open issue, not as a clear space. If the marks on the ground do not line up with the plan, stop to re-establish the setting-out rather than transferring the anchor point by eye.
What to do when a route conflicts with a fixing
If a detected route crosses a proposed anchor or foundation area, hold that fixing decision. Do not move a post a small distance on site simply to avoid the mark unless the revised position has been checked against the anchoring design. Changing a support position, span, foundation proposal or service route can alter the assumptions behind the layout. Have the designer or other responsible structural professional review any change and issue revised details where needed. Depending on the site, a solution might involve moving the overall footprint, planning a service alteration with the relevant contractor or developing a different foundation approach. None is automatic, and there is no single footing dimension that suits every site.
If records and detection appear to disagree, do not choose whichever version leaves the clearest space. Ask the locator to review the discrepancy, explain what is confirmed and identify whether additional investigation is required. Keep an uncertain route marked as such until the conflict has been resolved. If a different layout is proposed, including the Bloomcabin Wall-Mounted Pergola, treat it as a new set of fixing positions: check the relevant wall zone and any planned ground penetrations before accepting it. Have the updated layout and survey reviewed together so an apparent solution does not simply move the unresolved risk elsewhere.
Agree excavation controls before work starts
Once the positions are resolved, brief the installer and any excavation contractor using the current site plan, survey report and anchoring drawings. Agree which areas may be disturbed, where services or uncertain routes are marked, who is responsible for maintaining the markings and who must approve a change. Ask the competent people involved to set out any required limits or controls for excavation and drilling; do not create your own clearance distances from an approximate map line. If exploratory work or a service alteration is proposed, have the responsible contractor plan it under their own safe working procedures. Everyone on site should know what to do if the marks are lost or the work encounters something unexpected.
Before drilling or excavation begins, compare the physical setting-out with the latest drawings and confirm that the planned work has not extended beyond the surveyed area. Recheck marks if they have been disturbed, covered or moved during site preparation. A change in the pergola position, excavation extent or ancillary route needs to be reflected in the plan and reviewed before work proceeds. If an unknown pipe, cable or other service is exposed, or damage is suspected, stop work, keep people clear and contact the relevant service provider or emergency services as appropriate. Do not treat an unexpected find as permission to continue around it without assessment.
Keep a final record of the agreed layout
Before installation, compare the latest service survey with the approved anchoring drawings and the evidence available for the actual substrate. Confirm that every planned anchor, excavation and associated route falls within the area reviewed, and that any unresolved uncertainty is recorded as a hold point rather than left in a note no one will see. Make sure the installer has the current documents on site, not just an earlier sketch kept by the property owner. Agree who can authorise a change if the site conditions differ from the plan. This final review links the service information to the work that is actually about to happen.
After the work, keep an accurate record of where the anchors were installed and note any agreed changes to the layout or service routes. Dated photographs with measurements from durable reference points can help make the record understandable later; include depth information only where it was measured and documented by a competent person. Pass the updated information to the property owner and retain it with the service plans, survey report and pergola drawings. Future work on paving, planting or outdoor services should not depend on somebody remembering what was buried. A clear record makes the next site decision better informed, even when the original plans were incomplete.
Frequently asked questions
Are service plans enough to clear a pergola site?
No. Plans are useful starting evidence, but they may be old, approximate or limited to the services known to whoever prepared them. They may not show private installations or later alterations. Compare records with suitable on-site detection before fixing anchor positions.
Can a service locator prove that no pipe or cable is present?
A survey can report what was detected within its agreed scope and explain its methods and limitations; it cannot be treated as a universal guarantee that every service is absent. Ask which areas and materials were examined, and keep unresolved areas as uncertainties.
When should the survey take place?
Arrange it once you have a provisional pergola footprint and the model-specific anchoring information, but before the fixing positions are finalised or drilling begins. If the layout, foundation proposal or planned service routes change later, check whether the survey needs updating.
What if a service crosses a proposed anchor or footing?
Pause the fixing decision. Have the installer or designer review a revised position or layout against the approved anchoring detail. Any change to a service route should be planned with the relevant service provider or qualified contractor, not improvised during installation.
Do wall or slab fixings need checks as well as buried-service detection?
Yes. A survey of buried services does not automatically identify pipes or cables within a wall or slab. Arrange an appropriate check of each proposed drilling zone, using someone competent to assess the material and the particular work.
A pergola layout is ready for drilling only when the proposed fixings have been compared with both the site evidence and the anchoring details for the chosen model. Records, detection results and the final setting-out plan should agree, with uncertainties kept visible rather than assumed away. If a route, surface or position changes, review the affected area again before work continues. Keeping the service survey and installation drawings together gives the owner and contractors a reliable record of what was checked and where the finished supports were placed.
