Replacing Windows Without Losing Glass Area
UK window replacement guide
A replacement window can occupy the same place in a wall yet leave a noticeably smaller-looking view. The difference usually comes from the combined width of the outer frame, opening sash, meeting rail, mullion and any glazing bars. In a retrofit, the outcome also depends on whether existing frame material remains, where the new unit sits within the reveal and how trims complete the junction. Before choosing a style, photograph the view from inside, record what each window must do and identify blinds, radiators, worktops or furniture that could restrict operation. A quotation showing only overall width and height cannot confirm how much glass will remain visible. For a useful comparison, request a dimensioned inside elevation of the exact proposed configuration, supported by survey measurements and a written description of what will be removed and retained.
Start with the room rather than the catalogue
Decide what each opening must achieve in ordinary use. A lounge window may primarily frame a garden, while a kitchen window above a worktop needs reachable ventilation without colliding with a tap or blind. Mark the most valuable part of the view at seated and standing eye level. A broad rail that seems harmless on a small drawing can become conspicuous if it crosses the horizon or the view from a favourite chair. Record curtains, shutters, radiators, furniture and circulation routes too. This produces a practical brief: what must remain visible, which part must open, who will operate it and from where.
Where an aperture does not need to open, a fixed window provides a useful reference because no opening sash surrounds the pane. That can create a less interrupted glass field at the same overall size, but fixed glazing is an alternative only where ventilation and operating access are unnecessary. In a room with several apertures, fixed glass might occupy the best viewing position while another window provides ventilation. Compare the complete room elevation rather than deciding aperture by aperture. The objective is not to make every panel open or to minimise every frame indiscriminately; it is to place clear glass and usable opening functions where each contributes most.
Separate the opening, frame and visible glass
“Window size” can refer to several different measurements. The prepared wall opening differs from the manufactured outer-frame size, and neither tells you the clear view from indoors. Visible glass can also differ from a quoted daylight opening, depending on where each supplier takes the measurement. Ask for every dimension to be labelled: outside of frame, visible frame face, exposed glass edge or clear opening. A deeper reveal or wider finishing trim may further alter what appears visible after installation. Photograph the existing window with a tape measure in view, but treat those records as comparison information rather than manufacturing dimensions.
Create one comparison row for every important window. Include existing visible width and height, proposed overall frame dimensions, frame-face and sash widths, visible glass, daylight opening and the position of central divisions. Record whether figures are preliminary or survey-confirmed. For a fixed triangular and angled window, request a scaled elevation showing the actual glass line; a simple rectangular area calculation will not represent narrowing corners or an apex accurately. Use millimetres throughout so quotations, survey notes and order drawings can be checked consistently. If suppliers define visible glass differently, ask them to annotate the same points on their drawings before comparing figures.
See how individual sightlines accumulate
A fixed pane has an outer frame around its glass. An opening window adds a sash profile, while paired sashes add a meeting rail; coupled units may also introduce mullions. Each component can look modest in isolation, yet their combined width can make a compact opening feel crowded. Examine an inside elevation at a useful scale and ask whether it shows the faces visible when the window is closed. A cross-section can explain how the components overlap, but it will not reveal where vertical and horizontal lines fall across your view. Compare complete assemblies, not isolated claims about a single narrow profile.
Position matters as much as total glass area. A centre line may disappear visually against planting but stand out across an open sky or aligned interior feature. A two-sash outward-opening side-hung window necessarily has a division between its two sashes, so compare the closed elevation with a single-sash or fixed-and-opening alternative. Ask for the meeting-rail width and its exact location. If glazing bars are proposed, distinguish decorative bars used for appearance from glass-dividing bars within the glazing arrangement. Both alter the visual pattern, but they are not interchangeable descriptions. Approve the number, orientation and alignment of every visible division rather than relying on a style name.
Choose operation before narrowing the profiles
Opening method determines both usability and visual structure. One sash avoids a centre meeting rail, but its dimensions and movement must suit the room. For a single-sash inward-opening window, plot the likely swing against worktops, taps, blind fittings, shelves, furniture and walking routes. Also check whether the handle can be reached comfortably from the normal operating position. A sash that technically opens but is routinely blocked offers little practical value. Ask for the hinge side and handle position to appear on the elevation because reversing the handing can change how the room works even when the glass dimensions remain identical.
Two smaller sashes may be easier to operate in a particular layout, but they introduce a centre line. Top-hung, side-hung and pivoting arrangements create different profile patterns and clearance needs. A fixed pane beside a smaller opening section can reserve an uninterrupted area for the principal view while retaining ventilation elsewhere. Compare options against a specific scenario: a seated office view, a kitchen reach over a deep worktop or furniture beneath a bedroom window. Tell the supplier which section must open and how frequently. That brief is more useful than asking generally for maximum glass, because it makes the acceptable visual and operational compromises explicit.
Treat installation scope as part of the design

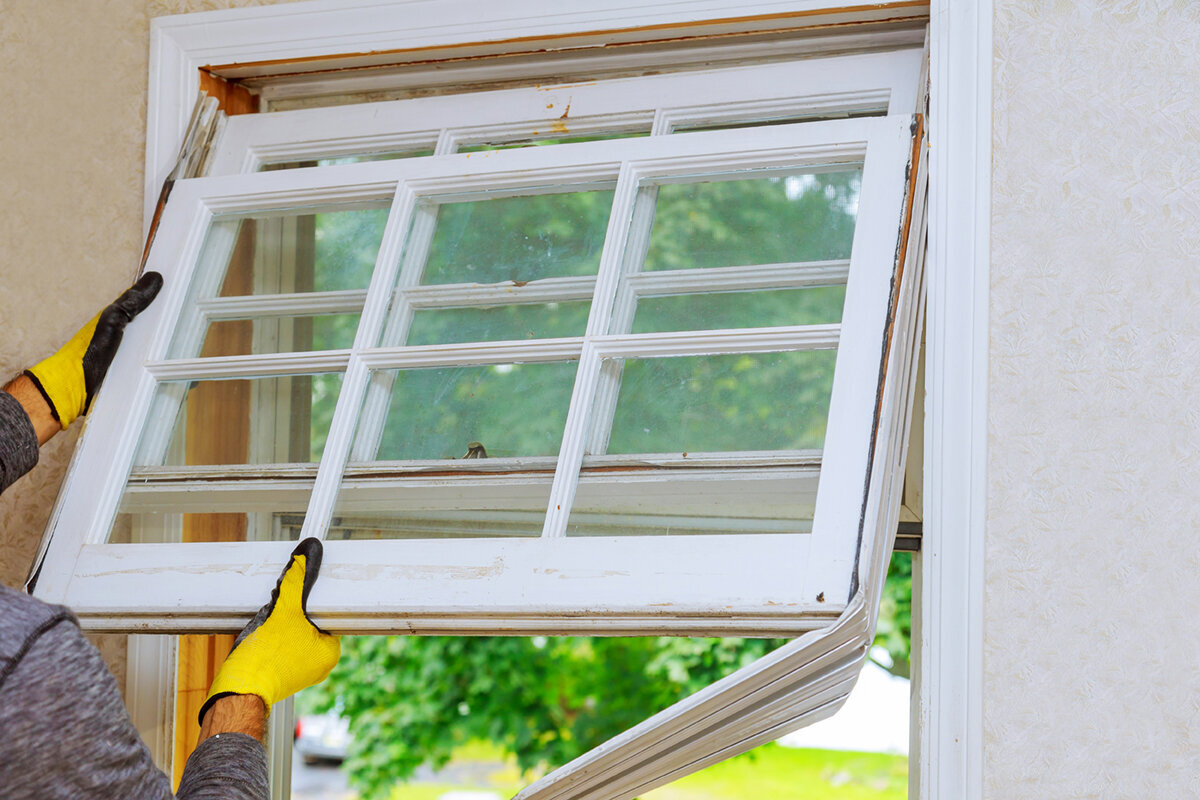

A new unit fitted within retained frame material can reduce the visible opening because one frame sits inside another. Complete removal may offer different geometry, but it can require more work to reveals, external junctions, trims and decoration. Neither approach should be selected from appearance alone. Ask the surveyor to state what will be removed, what will remain and where the replacement frame will sit. Request a section through the frame and reveal as well as an inside elevation. Together, these should show the likely finished border rather than presenting the window as an isolated product without its installation context.
Coordinate access and making good before approving the order. Discuss stairs, narrow passages, floor protection, furniture movement and how larger units will reach the opening. Establish who is responsible for internal linings, external finishes, sealant, plaster repairs and redecoration. If the replacement forms part of wider work, agree its sequence with kitchen fitting, insulation, cladding and window-covering installation. A trim introduced late can obscure more frame or glass than expected, while unfinished assumptions can delay subsequent trades. Manufacturing dimensions should follow the site survey and order confirmation; early measurements are useful for planning and comparison but should not be treated as final production instructions.
Compare complete window compositions
A wide opening does not automatically require one large sash or two equal opening leaves. A fixed centre pane with opening sections at the sides can protect the central view, while one reachable opening panel beside fixed glazing may suit a kitchen or furnished room. A Kombi combination window is relevant when considering a combined arrangement, but its exact panel divisions, opening actions and dimensions must be confirmed for the proposed unit. Draw seated and standing eye-level lines across each option. A transom above those lines may be unobtrusive, whereas the same division through a seated view can dominate the room.
Review neighbouring windows together. Matching head heights, sill lines and mullion positions can create an orderly elevation, but perfect external symmetry may not serve every room equally well. Decide where alignment is essential and where internal function justifies a different division. Include adjacent doors, sidelights and fixed panels on the same drawing so small offsets become visible before ordering. Ask where blinds, curtains or screens would be fixed and how much frame they need, because coverings can conceal glass even when the manufactured opening is unchanged. Every panel should have a defined purpose: view, daylight, ventilation, access or architectural balance.
Judge proportions within the actual reveal
Reveal depth, sill projection and frame position influence how broad a window appears from inside. A deep reveal can screen the glass at oblique viewing angles, while asymmetric existing reveals may make a centred manufactured unit look off-centre in the room. Measure and photograph the head, sill and both sides, noting tiles, panelling or other finishes that must remain. Ask the drawing to distinguish the window frame from added trims or cover pieces. Those details may be necessary to complete the junction, but their visible width should be understood before approval rather than discovered after fitting.
Non-rectangular openings need shape-specific drawings. With a round fixed window, the useful comparison is the circular glass line, surrounding frame and position in the wall, not merely its maximum width and height. For circles, arches and triangles, overlaying a scaled proposed outline on a straight-on photograph can clarify how the border will change. An opening mechanism would introduce further profiles, so fixed glazing may preserve the geometry where operation is unnecessary. It should not, however, replace an opening window if that aperture must provide everyday ventilation. Shape, frame and function need to be resolved together rather than selecting an unusual form from a product image alone.
Use glazing bars and colour deliberately
Glazing bars intentionally divide the view and can support the character and proportions of a façade. Specify the pattern rather than asking vaguely for a traditional appearance: record the number of divisions, their horizontal and vertical positions and how they align with nearby openings. Compare a clear option and a divided option at the same scale. A pattern that works on a front elevation may feel unnecessarily busy across a rear-garden view. Clarify whether the proposal uses decorative bars or glass-dividing bars, and ensure the approved elevation identifies them consistently. Their visual effect should be accepted as part of the design, not treated as a minor accessory.
Colour affects perceived prominence but does not alter measured glass area. A strongly contrasting frame can make every edge and division more noticeable, while a colour closer to the internal wall may appear to recede. Review the interior and exterior choices separately if different finishes are offered, and record the exact selected colour and finish in the order. Consider surrounding paint, curtains and the brightness of the view rather than judging a small sample on its own. When a configuration already contains several mullions or meeting rails, additional high-contrast decorative lines may make it feel denser. Establish a clear hierarchy: preserve the view where that is the priority, and use articulation where it serves the intended architecture.
Include glazed doors in the sightline plan
A window beside a patio door should be reviewed as part of one glazed wall. Door leaves, fixed panels and meeting points all introduce vertical lines that can reinforce or disrupt those of adjacent windows. A Patio Life side-sliding patio door is an alternative to a hinged arrangement where avoiding an inward door swing is relevant, but its suitability depends on the exact layout and access needs. Request both a closed elevation and an explanation of the opening action. The everyday view is commonly experienced with the door closed, so meeting-line positions may matter more visually than the largest possible open passage.
Hinged doors create different clearance and alignment decisions. A double-leaf patio door with outward opening can be compared where external leaf movement suits the available space, but its title alone establishes no dimensions or other performance. Confirm the active leaf, handles, threshold detail and relationship to curtains, furniture and the terrace. Place its centre line beside the divisions of adjoining windows on one drawing. A small misalignment may become conspicuous across a broad elevation, whereas deliberate alignment can make separate units appear coordinated. Review the proposal from the principal indoor seating position as well as from outside, since the two viewpoints can favour different compositions.
Convert the survey into an approval record
The final schedule should identify every opening by room and reference. For each unit, record overall dimensions, opening action, handing, fixed and opening panels, glazing-bar pattern, colour, handle position and drawing revision. Add visible-glass or daylight-opening dimensions wherever preserving the view is important. Ask which measurements were confirmed at survey, which allow fitting tolerances and which depend on concealed conditions. Resolve any difference between a sales sketch, quotation and survey drawing before approval. Keep straight-on photographs of the existing windows with the signed elevations so the intended change can be explained clearly to the supplier and installer.
Coordinate receipt and fitting at the same time. Bloomcabin windows and doors have a 5-year warranty, and delivery is typically 4–6 weeks subject to order confirmation; obtain the order-specific confirmation before arranging dependent work. Confirm who receives and inspects the units, where they can be stored and which rooms need protection. At handover, compare panel arrangement, handing and visible divisions with the approved drawing before surrounding finishes conceal junctions. Operate each window from its normal position, including over worktops or beside furniture. This final check connects the survey decisions to the finished result: a replacement that fits the opening while retaining the intended view, daylight and everyday practicality.
Frequently asked questions
Will a replacement window always have less glass than the old one?
No. Visible glass depends on overall frame size, profile widths, opening arrangement, divisions and installation method. A replacement may provide more, less or similar glass. Compare measured existing dimensions with a surveyed elevation of the proposal rather than assuming that matching nominal widths and heights will produce the same view.
Is fixed glazing always best for maximum glass area?
A fixed unit avoids the additional sash profile required by an opening window, making it a useful sightline benchmark. It is appropriate only where that aperture does not need to open. Fixed glass combined with a separate, reachable opening section may balance a clear view with practical ventilation elsewhere in the room.
What measurements should I request at survey?
Request overall frame dimensions, visible frame and sash widths, visible-glass or daylight-opening dimensions and the sizes and positions of meeting rails or mullions. Also confirm where the frame will sit in the reveal, what existing material remains, what trims are included and which dimensions await final order confirmation.
Do glazing bars reduce the useful view?
They place visible lines across the glass, so they change the view even when they suit the building’s design. Their effect depends on pattern, width, colour and eye-level position. State whether decorative bars or glass-dividing bars are intended, then approve their exact arrangement on a scaled elevation before ordering.
Can two quotations be compared using overall size alone?
Not reliably. The stated size may refer to a wall opening, the outside of the manufactured frame or another measurement point. Ask both suppliers to label equivalent dimensions. Compare visible glass, sash and frame widths, centre divisions, opening action, installation scope and finishing details using the same overall reference size.
Next steps
Preserving glass area is a survey and configuration decision, not simply a search for the largest stated window. Define the view and opening function needed in each room, then compare exact elevations at equal overall dimensions. Include frames, sashes, meeting rails, mullions, glazing bars, reveals and installation trims. Treat fitting within retained material and complete replacement as different visual outcomes, and coordinate access and finishing work before ordering. Fixed, single-sash, paired and combined arrangements can each be appropriate. The dependable choice is supported by a site survey, comparable measurements and an approved drawing showing the glass and divisions that will actually be visible.
