Bloomcabin Wall-Mounted Pergola

Direct house connection

For patios immediately beside living spaces

Open transition

Living space and garden remain directly connected

RAL colour selection

Frame colour to suit the façade, windows or doors

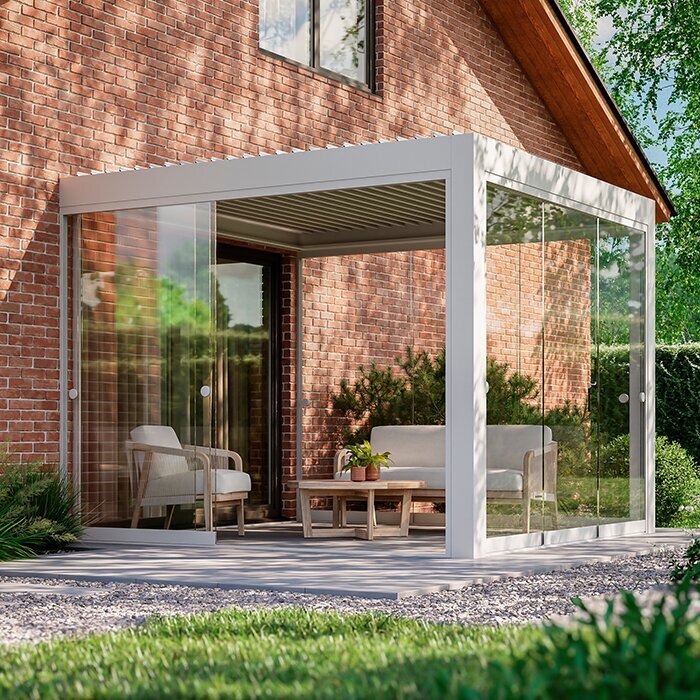

Integrated drainage

Gutter and drainage system within the structure

Wall position

Have the fixing line, load-bearing base, wall build-up, insulation, doors, windows and other façade details professionally assessed.

Furniture

Draw the dining table, lounge, planters and required chair-clearance space to scale on the patio plan.

Movement

Keep direct routes between living area, seating space, garden and side exits clear.

Drainage

Coordinate the outlet, patio fall and onward drainage so water is directed away from the building.

9–24 m²

Base your choice on usable furnished space, not only the patio’s external dimensions

255 cm

Consider when coordinating doors, windows and further façade details

High-quality aluminium profiles

Clean-lined aluminium construction for direct attachment to the house

Directly onto a suitable building wall

Have wall build-up, fixing zone and suitable fixings professionally checked first

Integrated gutter and drainage system

Define the outlet and onward water route before installation

12 years

Façade build-up and fixing zone

Brick façades, rendered surfaces and insulated walls differ greatly in their layers. Especially with external insulation, the visible surface is not automatically load-bearing. Fixings and connection details must suit the existing build-up so the structure is securely anchored without damaging the building envelope.

Before setting the wall line, note roller-shutter boxes, sills, canopies, lights, downpipes, ventilation openings and externally routed services. Components beside the proposed area can also obstruct tools, connections or later maintenance.

A qualified person should establish the load-bearing zone and ground condition before the final size is ordered. If the desired position is structurally unsuitable, the plan can still be adjusted at this stage. Changes after patio work or immediately before installation are usually far more demanding.

Sun position and existing shade

The house orientation determines when direct sun reaches the patio, façade and furniture. Neighbouring buildings, trees, roof overhangs and the building shape add further variation. Observe the area at the times when it will mainly be used.

On sunny patios, pale façades and paving can reflect additional light, while dark surfaces absorb heat. Position seating so views and comfort work together. Sensitive plants or textiles should not remain in a spot with hours of direct sun.

More covered area does not automatically mean more comfort. It is often better to position a table or lounge appropriately within the covered zone and keep the transition to the garden open. A sketch of the sun path helps assess planned furniture realistically.

Patio base and front posts

The posts need a suitable load-bearing base. Patio slabs or decking are only the visible finish; the structure beneath is what matters. Foundations, edging, voids, services or drainage components can affect possible post positions.

For an existing patio, establish whether the sub-base at intended post positions is suitable or needs preparation. With a new patio, coordinate these areas early with the patio contractor. Finishes can then meet the posts neatly and later disruption to completed surfaces is avoided.

Existing fall also needs consideration: it should lead water away from the house while allowing correct positioning at the planned posts. Record level differences, steps and patio edges accurately. A patio that looks level does not necessarily have the same height everywhere.

Everyday flow between house and garden

A surface near the door makes laying the table easier but must not narrow the passage. Test the route to the table with every seat occupied: people carrying dishes or trays should not need to squeeze between pulled-back chairs and the doorway.

Patio doors must remain fully operable. In addition to swing or opening space, allow room to stand, carry items and pass. Thresholds, steps and narrow passages need particular attention because furniture and walking routes can quickly conflict there.

The main route to the garden should run directly rather than through the tightest part of the seating arrangement. Where there are two exits, one can serve daily passage and the other the dining or lounge area. This keeps the seating area calm without limiting garden access.

Lighting and technical preparation

For evening use, a combination of ambient lighting and focused light at the table is usually more pleasant than one very bright fitting. Wall lighting can accent the house connection, while lower light sources highlight furniture. Avoid glare towards living rooms or neighbouring properties.

Decide on switches, sockets and cable routes before installation. Establish which connections come from the house and where cables would remain visible. Retrofitted external wiring can compromise the design and make gutters or connections harder to reach.

Lights and cables must not interfere with fixing points or water routes. Every component must suit its location; installation and connection belong with qualified professionals. Even where permanent lighting is not planned initially, conduits or connection points can be included during planning.

Furniture by intended use

For dining, table size, chair width and space behind chairs are decisive. For a lounge, sofa depth, direction of view and access to the low table matter instead. If both uses are combined, give one zone clear priority rather than creating two permanently cramped areas.

Large planters, braais and storage furniture are easily missed in early sketches. Yet they need floor space and must not cover important drainage or inspection points at the façade and posts. Movable items offer greater flexibility when the patio is arranged differently for guests.

Do not assess the layout only with chairs tucked under the table. It works only when people are seated, someone is serving and the patio door opens at the same time. Mark planned furniture outlines on the patio with tape or movable objects before ordering.

Side access and step-free routes where possible

Side routes matter when bins, bicycle storage, a garden shed or beds beyond the patio must be reached. A post in the wrong place can narrow a formerly convenient passage. Consider not only table use but also items regularly carried through.

For access with as little threshold as possible, the door threshold, patio finish and drainage must work together. Adding the pergola does not change the detailing needed at the doorway. Allow for existing levels and coordinate any patio renewal with the building waterproofing.

Prams, serving trolleys and larger garden furniture need more room than one walking person. Make these needs visible in the layout before finalising post positions and fixed planters. One adequately wide main route is more useful day to day than several narrow leftover spaces.

Colour choice in relation to the building

Frame colour decides whether the wall pergola blends into the façade or stands out as an individual element. Picking up the shade of windows or doors creates a connected appearance. Contrast can work when the pergola should clearly define the patio area.

Consider the roof edge, plinth, floor finish and fixed railings as well as wall colour. Too many different tones can quickly make a small side of the house feel busy. Use permanent materials as a guide rather than replaceable cushions or seasonal plants.

View the preferred RAL shade in daylight at the building wherever possible. Render texture, brickwork and reflective glazing can change its effect. Depending on the shade, dust or splash marks may also show more clearly, which can be relevant on a frequently used patio.

Outlet for the integrated system

The gutter and drainage system needs a clearly defined connection to onward water management. Before installation, establish where water leaves the structure and how it will be led away from the house. Otherwise it may escape uncontrolled at the patio edge, causing puddles or splashback.

Existing downpipes, infiltration areas or rainwater-storage options may be included where local conditions and professional execution allow. Do not improvise connections. If uncertain, agree the solution with the patio contractor or a suitable specialist.

Set the water route before new paving, slab or drainage work begins. Pipe runs and transitions can then be integrated into the sub-base instead of adding visible channels or cut-outs later. With an existing patio, check that the planned outlet area can be reached.

Cleaning and regular visual checks

Dust, pollen, leaves and other deposits collect on a structure beside the house. Check gutters and outlet areas regularly, especially where trees stand close to the patio. Remove dirt before it restricts water flow or dries onto visible surfaces.

Aluminium surfaces can be cleaned with gentle products suitable for the relevant finish. Abrasive or aggressive cleaners can damage the visible coating. Follow product-specific care instructions before large-scale cleaning and, if necessary, test the product on an inconspicuous area.

During care, also check joints, visible fixings, the wall connection and water routes. If changes are found, do not cover them up or ignore them; have them professionally assessed. Furniture and planters must not permanently obstruct access to these areas.

An adaptable layout

Use patterns and garden furniture often change sooner than the pergola. A large dining table wanted today may later give way to a lounge or smaller seating group. Clear edge areas and well-positioned routes make such changes easier without altering structural elements.

Built-in cabinets, heavy planters and permanently installed equipment reduce this flexibility. Keep them outside drainage, inspection and main circulation routes. Mobile storage and planters are easier to move for cleaning or rearranging.

Also consider views from adjoining rooms. Posts and furniture remain visible there throughout the year, even when the patio is unused. A balanced arrangement preserves garden sightlines and avoids tall furniture directly in front of windows.

Wall pergola

It is fixed directly to a suitable building wall and structures the adjoining patio area. Its planning therefore depends especially on façade build-up, doors and windows, plus local water management.

Freestanding pergola

It stands independently from the building and can define a separate seating area in the garden. It needs its own site and base planning; a load-bearing house connection is not part of its concept.

Bioclimatic pergola

A bioclimatic pergola is a version with an adjustable roof, allowing light and air to be regulated more flexibly. Whether this function is wanted depends on intended use; assess it independently of whether the pergola is wall-mounted or freestanding.
