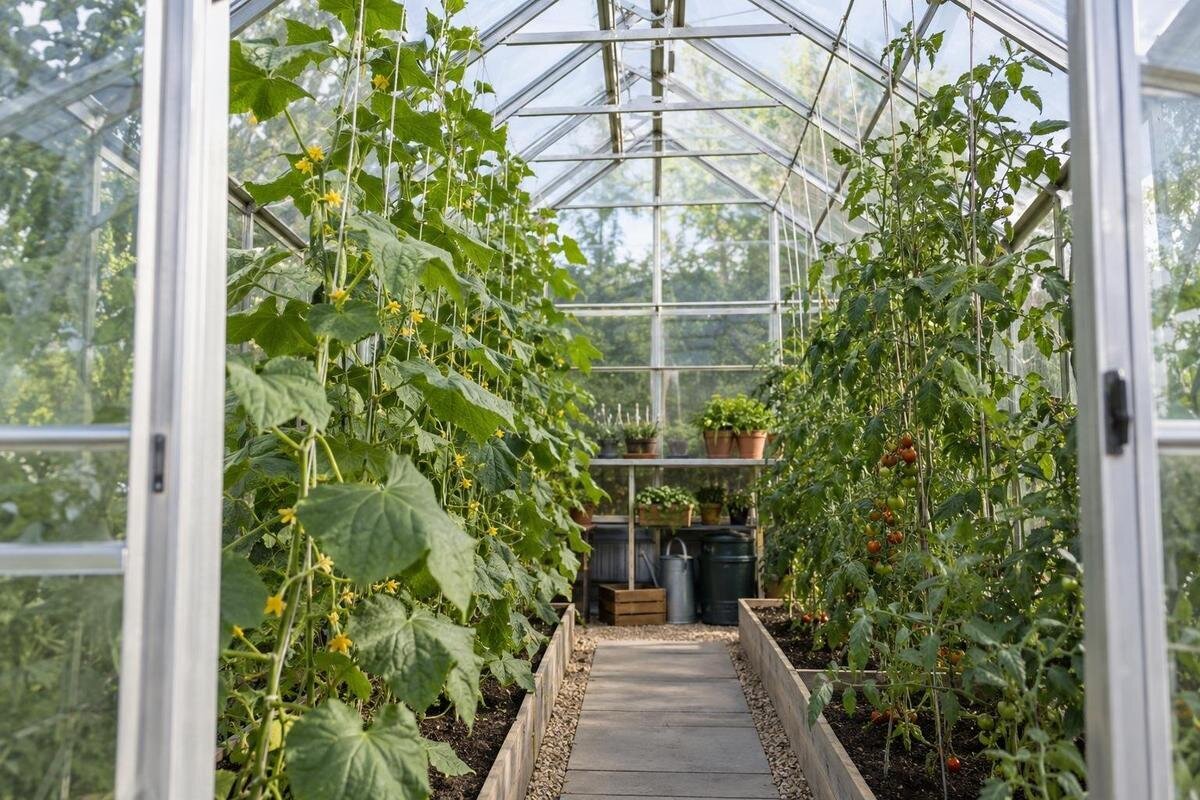

How to Plan Greenhouse Headroom for Climbing Crops
Greenhouse planning
Climbing crops make use of the space above a bed, but a greenhouse’s ridge height does not tell you how much room is available where each plant will stand. Roof slopes, raised beds, containers, support fittings and the height needed to tie in or pick a crop all affect the answer. Plan around the mature plant and its training method, then check that plan against internal dimensions at the actual growing position.
Questions to ask before choosing 1
Measure headroom at the crop row
Headroom is the vertical distance from the growing surface to the lowest obstruction above the crop. That surface may be soil in a bed, compost in a pot or the top of a raised bed; the obstruction may be a roof member, vent component or support fitting rather than the glazing. The ridge is the roof’s highest point, while the eaves sit lower at the sides. A row below a sloping roof can therefore have much less clear height than one nearer the centre. Measure at the crop line you plan to use, not only in the middle of the greenhouse, and note the measurement point on your sketch.
Record two figures for every proposed row: the clear vertical height from the planting surface to the obstruction, and the full height reached by the trained plant and its support. Then consider the gap needed to tie in, adjust growth, inspect leaves and pick fruit. A crop may fit within a bare dimension yet leave no practical way to reach its top. Roof fittings or vents can occupy space that looks free on a simple outline. Note what sets the limit at each measurement point, so you can distinguish a roof slope from a projecting fitting when comparing positions. Headroom must accommodate both the crop and the work involved in tending it. If rows cross different roof heights, give each one its own entry and compare the lowest points, not just the average.
Use mature crop height, not seedling height
Use the mature height for the specific variety and training method, not a generic figure for climbing crops. Tomato cultivars differ, and a cordon trained up a cane or string uses vertical space differently from a compact bush type. Cucumbers can also be trained upwards, but their eventual leader and side growth depend on the variety and method. Climbing beans, peas and other crops have their own growth ranges. Check the seed packet or supplier’s growing information, then note the maximum height you intend to allow. A seedling’s size at purchase says little about its final headroom requirement, so make a separate note for each crop.
Be precise about what mature height means in your plan: the top of the main stem, the top of the support and the highest point of the foliage are not interchangeable. If a tomato cordon is expected to keep extending, decide how its support will be adjusted; if a crop is trained to a set height, base the plan on the method you intend to use. Record the intended trained height beside the variety’s stated growth range, rather than treating either figure as a complete description of the plant. This makes your assumption clear when you compare crops or revise the planting plan. Include side shoots and leaves as well as the main stem, because they fill space around the tie point. Avoid making a low roof work on paper by assuming you will cut growth back whenever it reaches the limit.
Questions to ask before choosing 2
Allow for the support and room to work
A support system uses some of the available height. A cane tip, cord, crossbar, clip or hanging loop may sit above the point where the crop is tied; the plant may also grow beyond its last tie. Measure from the growing surface to the intended highest tie point and note what lies above it. Draw the route in a cross-section: where the support starts, where it ends and whether it passes near a roof member, vent or door. Plan for the fittings as well as the plant, since a clear roof outline does not show every possible obstruction.
Plan the work at the top of the crop too. Tying, adjusting, pruning and picking all take room for hands and tools, and a support that nearly touches the roof may be difficult to reach. Do not assume greenhouse framing is designed to carry a suspended crop or support: follow the manufacturer’s instructions and ask the supplier or a qualified installer if a fixing point or its intended use is unclear. A support that does not rely on the roof may be an alternative, but include its footprint in the plan. If you are considering the Lean-to Greenhouses range, use the selected model’s internal section to check the roof profile above the proposed row.
Measure from the final growing surface
Use the level where the plant will actually start, not automatically the greenhouse floor. A raised bed lifts the soil surface; a pot lifts its compost above the ground as well. That reduces the clearance available above the plant by the same amount. If a drawing gives height from the internal floor, compare it with the planned bed or container level at that position. Label both levels on the sketch so that a floor-to-roof measurement is not accidentally compared with a plant height measured from the compost. Record different levels separately if you are mixing beds, pots and floor planting, and make sure the measurement still runs to the lowest obstruction above each one.
For a buying comparison, look for an internal dimensioned drawing or cross-section for the specific model and size. An external height, floor area or single maximum-height figure cannot show how much room is available over a side bed. Keep the growing-surface level consistent across your shortlist: comparing one option from floor level and another from the top of a raised bed would give a misleading impression of the difference. If a product page does not give the necessary detail, ask for the relevant drawing rather than estimating from a photograph. If you include Limited Edition Aluminium Greenhouses in your shortlist, check the chosen option’s internal measurements at the intended planting level before deciding where a climbing crop will fit.
Questions to ask before choosing 3
Roof shape changes the clearance across a bed
A sloping roof creates a band of different heights between the eaves and ridge. The centre may offer the most clearance, while a row closer to the sides has less; the exact pattern depends on the roof profile. Mark the bed’s centreline on a cross-section and compare it with the roof at that point. If the mature foliage spreads beyond the row, check the clearance at the canopy edges too. A tall stem may fit beneath the ridge while leaves or ties extend into a lower section of the roof.
Do not use the shape or name of a greenhouse as a substitute for a measured section. A plan view shows where the floor area lies, but it does not reveal the vertical profile above every possible crop row. For a T-Shaped Orangery Greenhouse, for example, identify the exact part of the plan where you expect to plant and request the section that corresponds to it. Compare the internal roof profile, support fittings and bed level there; the overall outline alone cannot establish usable headroom.
Map usable height along each planting row
A simple sketch makes the measurements easier to compare. Draw a cross-section through the proposed bed, mark the finished growing surface and add the roof profile, including any visible members or fittings that could reduce clearance. Write the measured height at the centre of each intended crop row and at points where the roof slopes lower. On a separate floor plan, mark the rows’ positions. Together, these views show whether a support can stand in the chosen place and whether the plant’s width may reach into a lower part of the roof.
Illustrative example only; these are not dimensions of any available product. Suppose clear height above a bed is 1.45 metres near the side, 1.85 metres farther in and 2.20 metres beneath the ridge. A planned support reaching 1.70 metres would not fit in the first position and would leave only 15 centimetres beneath the obstruction in the second. Mark each position on the floor plan as well as the section: the figures are useful only if you know where the corresponding support would stand. The ridge position offers more room, but fittings and working access still matter. The purpose is to compare locations, not set a standard crop height or recommend a particular working gap. A Pyramid Greenhouse listing can be part of a model comparison, but its name alone does not give clearance at a particular bed.
Questions to ask before choosing 4
Place tall crops where the roof allows
Use the height map to place taller trained crops where their support and mature foliage have adequate clearance. That may be nearer the ridge, but the highest point is not automatically the best planting position if it obstructs the aisle, a door or access to another bed. Mark the whole mature plant on the floor plan, including the space its leaves may occupy, rather than drawing only a narrow stem. Keep lower-growing crops in zones where the roof gives less vertical room, if that arrangement suits the crop plan.
Include any storage or fixed furnishings before assigning growing space. If you are considering the Limited-Edition Aluminium Greenhouses with Storage range, mark the storage area shown for the chosen option on the plan, then draw the bed, support and mature canopy around it. Include the space needed to reach the storage, rather than showing only its footprint. A crop row that leaves the storage physically clear may still make it awkward to use once the foliage fills out. Do not count an area as a planting zone simply because it lies near a wall or beneath a roof slope. Check the actual internal plan for the storage position and dimensions; the product name does not establish how much room remains for a crop.
Check access to the top of the crop
A plant that fits vertically may still be awkward to manage. Before settling on a row, mark the planned support height on a cane or other temporary measure and check whether you can reach the tie-in point from the aisle without leaning on the roof or disturbing neighbouring plants. Consider how you will inspect the upper leaves and pick fruit as the crop fills out. If the only way to reach the top is to move pots or step into a bed, change the row position or support plan before planting.
Check the support route against doors, vents and other features that need to remain accessible. Show the space these need when open, not just their closed position, and consider whether upper foliage would obstruct your hand when using a handle or tending the crop nearby. This is a different check from whether the support fits beneath the roof: a clear vertical route can still interfere with everyday use. A support standing on the bed or floor also needs enough space around its base for you to pass and work. If a Bloomcabin Prestige Greenhouse is on your list, use the selected model’s drawing to mark these access points alongside the proposed support route.
Questions to ask before choosing 5
Plan for the crop at its fullest
Base the layout on the crop’s mature form, not the extra clearance a small plant appears to have early in the season. Include its final leader, support and expected foliage, then consider whether the support needs to be adjusted as it grows. If you change crops from one season to another, avoid assuming the same row will suit both: a low-growing crop and a trained climber can make very different use of the same roof profile. Leave flexibility where you expect to change varieties or training methods.
When different crops share a greenhouse, account for how their mature leaves occupy space beside and above one another. A tall plant can crowd a neighbouring row or shade lower foliage, while a wide canopy may reach beneath a lower roof section even if its stem is well placed. Draw the expected spread alongside the height profile and check that the aisle and access points remain clear. Consider adjacent rows together rather than giving each plant a separate outline that overlaps its neighbours without explanation. Where they overlap, decide whether your training plan actually allows that arrangement. A Spacious Greenhouse listing may be relevant to a larger layout, but extra floor area does not by itself confirm the headroom over a particular bed.
Compare internal drawings before choosing
For each model under consideration, check the internal height from the planned growing surface to the roof at the exact row position. Look for the ridge and eaves measurements, the cross-section between them and any frame members or fittings that may affect the support route. Check that the drawing relates to the selected model and size, not just to a similarly named range. If only the overall height or floor area is shown, ask for a dimensioned internal section before relying on it for a tall crop. You can include the Aluminium Greenhouses range in this comparison, but the drawing for the chosen option is what answers the headroom question.
Bring the crop notes and greenhouse measurements together in one sketch. The plan should show the finished bed or pot level, the mature trained height, the support’s highest point, the clearance left above it and the room needed to reach the crop. Check the lowest parts of the roof over the full canopy, not just the stem at the ridge. If the figures leave no workable space for fitting, tending or picking, choose a different row, training method or model rather than relying on an unmeasured margin.
Frequently asked questions
How much headroom do tomatoes need in a greenhouse?
There is no single figure for every tomato. The variety and whether it is grown as a cordon or a compact plant affect its mature height. Compare the intended training method and support with the clear height above the actual bed or pot, and leave room to reach and tend the top.
Is the greenhouse ridge height enough to plan a climbing crop?
No. The ridge gives the maximum height at one point, not the clearance across the growing area. A row beneath a slope may have substantially less room. Check an internal cross-section at the position of each planned row, measured from the growing surface.
Do raised beds reduce usable headroom?
Yes. A raised bed or tall pot lifts the planting surface, leaving less vertical space above it. Compare the roof height with the top of the growing medium, rather than measuring only from the greenhouse floor.
Can I hang tomato strings from the greenhouse roof?
Only if the greenhouse manufacturer confirms that the particular fixing point and its intended use are suitable. Do not assume the frame is designed to carry a suspended crop or support. If this is unclear, ask the supplier or a qualified installer, or consider a support that does not rely on the roof.
Can climbing crops grow under the eaves?
They can if the mature trained plant and its support fit within the measured clearance, with enough room to tend and pick the crop. Because the eaves are lower than the ridge, check the roof profile above that exact row instead of relying on the greenhouse’s maximum height.
Useful headroom is the space where a mature, supported crop can grow and still be reached for routine care. When the growing surface, roof profile, support route and crop spread are drawn together, you can see whether a climber belongs beneath the ridge, beside a lower roof section or in another position. That measured view is more reliable than choosing by the greenhouse’s maximum height alone.
