Plan your sauna heater and electrical connection properly
An electric sauna heater must suit the actual sauna room, controls and existing electrical installation. This guide outlines the information needed before purchase, how to interpret rating-plate data and what to agree with the electrical professional carrying out the work.
Electrical planning for an outdoor sauna does not begin by selecting a circuit breaker. First assess the sauna room, heater, controls, sensors and installation location as one system. Only then can the required supply, protective measures and cable routes be determined.
This guide explains a technical approach for private outdoor saunas in Malta. It does not replace the manufacturer’s installation instructions or assessment by an appropriately REWS-authorised electrical professional. The documents for the components actually supplied, together with applicable local connection and installation requirements, always take priority.
What an electric sauna heating system includes
The sauna heater is only one part of the heating system. Depending on the version, further components may be needed and must be technically matched:
- Sauna heater: Heating unit with heating elements, stone compartment, connection area and specified safety clearances.
- Sauna stones: Stones suitable for the relevant heater, in the specified size, quantity and arrangement.
- Controls: Integrated into the heater or supplied as a separate control unit.
- Power unit: A separate switching unit for the heater’s electrical load in certain systems.
- Temperature sensor and safety temperature limiter: Monitor temperature at the specified position.
- Control panel: Local user interface inside or outside the sauna room, depending on the system.
- Connection and sensor cables: Cables suitable for the temperature range, location and manufacturer requirements.
- Protective devices: Circuit protection, residual-current protection and, where required, an isolating or shut-off facility.
Do not assume that every part is included. Check the specific product documentation. The Sauna section gives an overview of different designs. Even cabins of similar size can require different heater configurations.
Start with the sauna room, not the consumer unit
Heater selection depends on the room’s effective heating load. Internal volume is an important starting point, but not the only one. Glazing, uninsulated or highly conductive elements, door surfaces, room shape, air flow and outdoor conditions all affect heat-up behaviour.

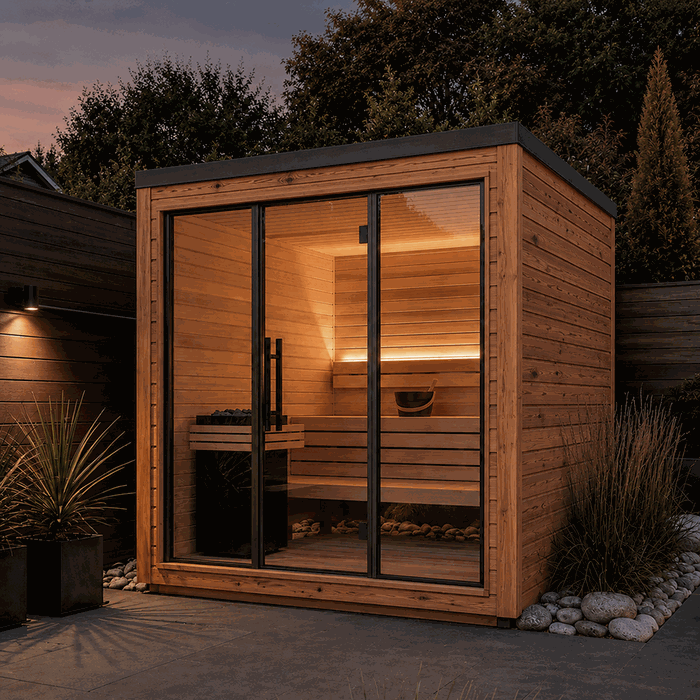

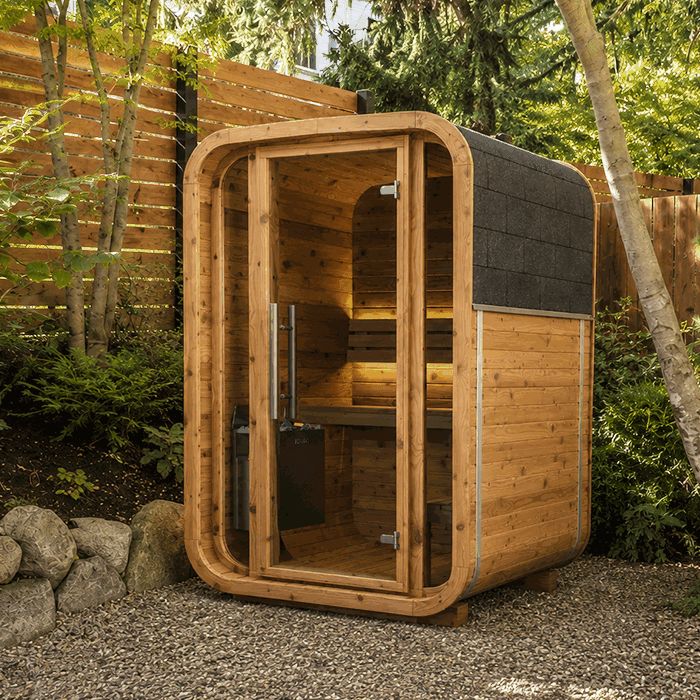

A compact Elma S outdoor sauna and the larger Elma L outdoor sauna must therefore not be treated as electrically identical solely because they look similar. The same applies when comparing an HC150 barrel sauna with longer barrel models.
Excessive heating output is not automatically better. It can alter control performance and demand unnecessarily high connection capacity. An undersized heater may run for a long time, struggle to reach its target temperature or create unfavourable temperature distribution. Match the heater using the calculation guidance from the heater and sauna manufacturers.
Information for a reliable heater recommendation
- exact sauna model and intended installation version;
- clear internal dimensions and calculated internal volume;

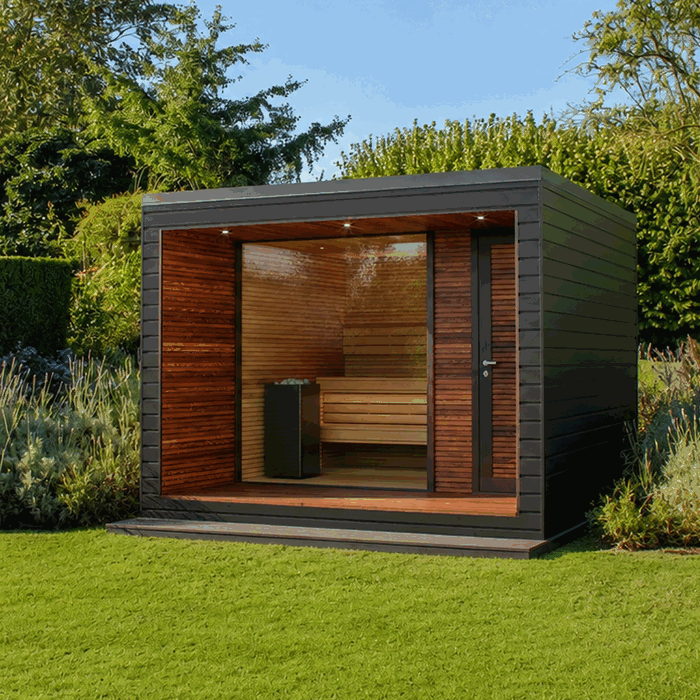

- size and type of glass, stone or other unusually uninsulated surfaces;
- wall, ceiling and floor construction, where documented;

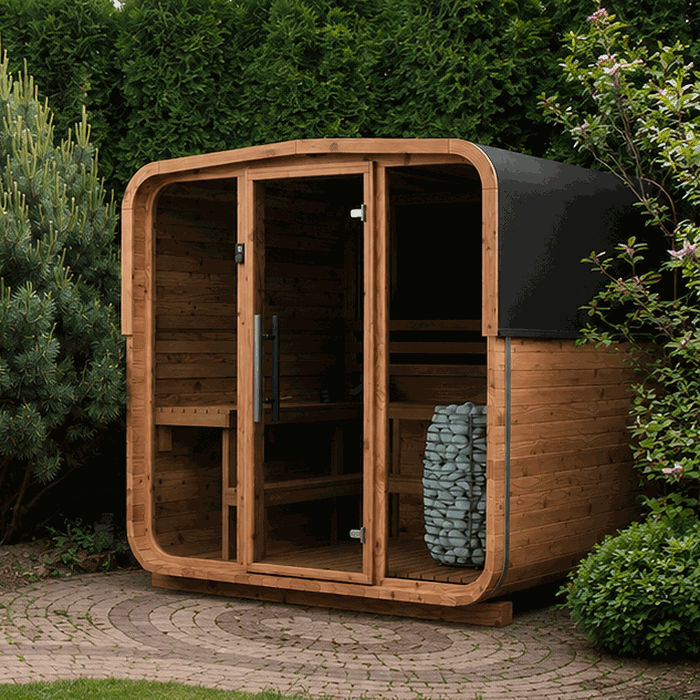

- planned heater location and possible mounting method;
- clearances to benches, walls, door and heater guard;
- sauna location and length and route of the planned supply cable;
- existing electricity supply and spare capacity in the distribution board;
- required local or remotely operated control functions.
If uncertain, send the product name, floor plan and site photographs together. Product-specific questions can be clarified through Contact .
Reading the sauna heater’s electrical data correctly
Advertising and brief descriptions often state only heating output. That figure is insufficient for electrical planning. Use the rating plate, wiring diagram and installation instructions for the exact appliance version.
| Specification | Why it matters for planning |
|---|---|
| Rated output | Electrical power consumption under the stated operating conditions. |
| Rated voltage and supply type | Shows the supply and connection configuration intended for the appliance. |
| Rated current | Basis for selecting cables, switching equipment and protection with installation method and manufacturer instructions. |
| Phase and terminal configuration | Defines the permitted electrical connection. It must not be estimated from output. |
| Control type | Determines whether a panel, power unit and sensors are additionally required. |
| Ingress protection and installation location | Limits where a component may be fitted. |
| Cable requirements | May specify cross-section, temperature resistance and connection conditions. |
Do not derive current from an advertised wattage alone. Internal wiring, phase count, control components and the country-specific appliance version must all be considered.
Dedicated circuit, protective devices and isolation
An electric sauna heater is a high load operating for extended periods. Planning will therefore normally consider a dedicated, correctly sized circuit. A REWS-authorised electrical professional must determine whether and how all-pole isolation, residual-current protection or other protective devices are needed, based on the appliance, existing installation and applicable local requirements.
A socket that physically fits an accessory plug says nothing about its suitability for the heater. Extension leads, portable cable reels and improvised garden power connections are not a planned supply for a permanently installed sauna heater.
Questions for the electrical professional
- Is the existing service and distribution capacity sufficient?
- What supply and connection type does this exact heater require?
- Which cable is needed for the intended length and installation method?
- Which protective devices are required by manufacturer documents and site conditions?
- Where may the connection or junction point be located?
- How can the installation be safely isolated and protected against reconnection?
- Are excavation works, protective ducts or changes to the distribution board needed?
- Which tests and documents will be handed over on completion?
Connection capacity and distribution planning
A spare distribution-board way does not prove sufficient capacity. Check the service connection, upstream protection, diversity, cable routes and major loads, including heat pumps, vehicle chargers, instantaneous water heaters, electric cookers and garden equipment.
Plan the sauna with the wider garden installation. Lighting, outdoor sockets, pumps, pergola drives or a future garden building may need extra circuits. Adequate infrastructure can reduce later excavation and alterations, but never justifies exceeding the heater’s specified protective-device rating.
Cable routing and heat exposure
An outdoor sauna includes several electrical environments: ground or external areas, possibly a technical area, and the hot interior. A cable suitable in a cool zone may not be suitable near the sauna ceiling or heater connection.
Set the cable route before foundation and assembly work. Consider mechanical protection, moisture, UV exposure, permitted bend radii, penetrations and separation of power and sensor cables. Cables must not be routed casually over hot surfaces, sharp edges or future fixing points.
Avoid penetrations through roofs and external walls where possible. Any necessary opening must be designed to keep water out of the wall construction. Do not seal unused openings with unsuitable improvised materials.
Controls, sensors and remote operation
Sauna heaters may have integrated controls or require separate controls. With external systems, the panel, power unit, temperature sensor and any further safety equipment must be treated as an approved complete system. Do not combine components from different systems merely because plugs or terminals look alike.
The manufacturer specifies the temperature sensor position. It affects both control and safety shut-off. Moving it to a cooler point to obtain a higher cabin temperature is an unauthorised alteration and may cause dangerous overheating.
Remote-start or app functions often need additional safety logic. Before every remote start, ensure that towels, cleaning equipment and other items are not on or too close to the heater. A generic smart-home relay does not replace the manufacturer-specified control system.
Earthing, bonding and protection against electric shock
Protective conductor routing, earthing, equipotential bonding and residual-current protection must be assessed as part of the whole installation. Do not connect metallic parts together automatically and without planning. The electrical professional decides which conductive parts are included and how protection is verified by measurement.
A timber building is not automatically electrically risk-free. Moisture, wet skin, outdoor installation and high temperatures place particular demands on equipment and installation. Alterations made independently after handover may impair the tested protective effect.
Safety clearances and heater guards
Specified clearances between the heater and timber surfaces, benches, ceiling, door and other components are binding planning dimensions. They are given in the installation instructions for the exact heater version. General experience or dimensions from a similar-looking heater are not enough.
A heater guard can prevent accidental contact, but must not impair air circulation or safety clearances. It must be securely fitted and must not be used as a shelf or to dry textiles. When comparing layouts such as HC 180, HC 225 and HCF 225, consider not only seating space but also the safe heater area.
Practical sequence before purchase
- Choose the sauna model: Clarify design, interior, door and glazing areas, and heater position. The guide Choosing a timber, barrel or garden sauna helps with initial orientation.
- Check the site: Clarify access, foundation, drainage, boundary considerations and local requirements. The article on whether garden structures may need planning permission offers guidance; ask a perit to confirm the Planning Authority classification for the specific site.
- Request a heater recommendation: Provide room data and required functions to the supplier.
- Obtain appliance documents: Make rating-plate data, wiring diagram and instructions available before electrical planning.
- Appoint an electrical professional: Have the existing installation, cable route and protection concept inspected on site.
- Separate cost items: Record sauna, heater system, excavation, supply cable, distribution alterations and commissioning separately.
- Confirm the delivery scope: Complete the order only when it is clear which control, sensor and connection components are included.
- Coordinate the assembly sequence: Decide which cables are installed before the foundation or assembly, and which connections follow completed installation.
Information about the ordering process is available under How to order. Also review logistical points under Purchasing and delivery .
Delivery and inspection of heater components
Before installation, check the delivery for visible damage, correct model names and completeness. Compare the rating plate, controls, sensors, panel, power unit, fixing materials, sauna stones and documentation with the order confirmation.
Do not repair damaged terminals, kinked sensor cables or distorted housing parts yourself. Keep packaging and labels until the matter is resolved. Questions about scope and claims can be considered under the Guarantee terms.
Installation and commissioning checklist
- sauna fully assembled in accordance with installation documents;
- heater model and electrical appliance version checked against the plan;
- heater securely mounted and all clearances checked;
- heater guard correctly fixed, where provided;
- stones checked, cleaned and loosely arranged as instructed;
- temperature sensor and safety devices installed exactly at specified positions;
- power and sensor cables routed separately and protected;
- connection terminals checked to manufacturer instructions;
- protective conductor, protective devices and isolation facilities checked;
- electrical measurements completed and documented by the professional;
- ventilation openings clear and not obscured by equipment;
- first heating cycle supervised;
- controls, shut-off and operating elements function-checked;
- users instructed in safe operation, isolation and action in case of fault.
Production- or material-related odours may occur during the first heat-up. Ventilate the room as instructed by the manufacturer. Unusual heavy smoke, arcing, burning smells or repeated operation of a protective device require immediate shut-off and professional inspection.
Maintenance and fault finding
Before each use, check the heater area for objects. Regularly inspect the stones, visible cables, fixings, guard, ventilation openings and controls. Crumbling or compacted stones can obstruct airflow and strain heating elements; replace and rearrange them as the heater instructions require.
If a protective device operates, do not repeatedly switch it back on without finding the cause. Possible causes range from moisture and cable damage to faults in heating elements, controls or connections. Apparently normal heating does not rule out an electrical fault.
Record the time, operating phase, displayed error codes and unusual observations. This information helps service staff and the electrical professional. Housings, terminal compartments and control units may only be opened when safely de-energised and by appropriately qualified persons.
Integrating the sauna into overall garden planning
The best technical sauna location considers more than the electricity connection. Walking routes, privacy, water drainage, lighting, wind direction and maintenance access affect later use. An HCF 300 or LC 225 should therefore be included in the site plan with its real access and technical areas.
If a pergola is also planned, the article on choosing a bioclimatic pergola can help with zoning. A greenhouse has fundamentally different temperature and humidity requirements; see the guidance on greenhouse temperature and humidity and polycarbonate and insulation performance.
Ideas for the overall design can be found in Garden trends. Available building categories include Greenhouses and conservatories and Garden sheds . Further technical content is collected under Useful information.
Frequently asked questions
Can I use an existing household socket for an electric sauna heater?
This cannot be decided by looking at the socket. Many sauna heaters need a different supply and a permanently planned dedicated circuit. The rating plate and wiring diagram are decisive. Even for a smaller appliance, an electrical professional must inspect the existing installation and protection.
How do I determine the correct heater output?
Start with internal volume and room construction. Include glazing, poorly insulated elements, room shape and the manufacturer’s calculation. The external length of a barrel sauna or number of seats is not sufficient for selection.
Should I buy the heater before contacting an electrician?
Ideally, preselect a specific heater model and obtain its technical documentation first. Purchase only once electrical feasibility and the complete system scope are clear. This helps avoid unsuitable appliance versions and unexpected alterations.
Can the circuit breaker be calculated from advertised wattage?
No. Voltage, phases, rated current, connection method, installation conditions and manufacturer requirements are also needed. The electrical professional sizes cables and protective devices as one system while considering the existing installation.
Does every sauna heater have built-in controls?
No. Some heaters have integrated controls; others need external controls, sensors and possibly a separate power unit. Before ordering, establish which components belong together and are included.
May I fit the temperature sensor where it displays my preferred temperature?
No. The manufacturer defines the sensor position. Free placement distorts control and can compromise the safety shut-off. Any later relocation should follow approved documentation only.
Can a smart-home relay switch the heater?
Only if the heater system has an expressly intended interface and all safety conditions are met. A universal relay must not replace approved controls, interlocking or remote-start monitoring.
What should I do if a protective device trips during heat-up?
Switch off the heater; do not reset it repeatedly. Record the operating phase and errors. An electrical professional or authorised service provider must inspect the connection, cable, protective device, elements and possible moisture.
Does a wood-fired sauna also need electrical planning?
Yes, if lighting, sockets, controls or other electrical loads are planned. Although the heater itself adds no electrical load, outdoor installation, moisture protection and cable routing still matter. Obtain project-specific professional advice on the wood-fired heater’s flue, combustion air, clearances, fire safety and planning.
Can the electrical installation be completed before the sauna is assembled?
Underground cable, protective ducts and parts of the distribution installation may be prepared where appropriate. Final positions for the heater, sensors, panel and connection points should, however, be checked against the actual assembly. Final connection and testing take place on the assembled system.
Which documents should I keep?
Keep the invoice, order confirmation, rating-plate data, installation and operating instructions, wiring diagram, test record, control settings and photographs of concealed cable routes. These documents help with maintenance, spare-part identification and later alterations.
Who makes the final electrical decisions?
The heater manufacturer defines appliance requirements. The sauna supplier provides room- and product-specific information. The electrical professional carrying out the work assesses the existing installation, local conditions and applicable requirements. General online recommendations must not replace the final connection design.
