Electrical Preparation for a Motorized Pergola: Louvers, Controls and Lighting

A motorized pergola requires coordinated planning for the louver motor, controls, optional lighting and safe outdoor cable routing. This guide explains what to confirm with Bloomcabin and your electrician before foundations are completed, where electrical components may be located, and how to prepare for installation without guessing at product-specific electrical requirements.

Electrical preparation for a motorized pergola should begin before the foundation is poured, the patio surface is finished or the pergola arrives. Early planning makes it easier to conceal appropriate wiring routes, place controls conveniently and avoid drilling finished structural components unnecessarily.

The exact electrical design depends on the pergola configuration, selected accessories, installation location and product documentation supplied for the order. Do not assume a motor voltage, circuit size, cable type, control method or lighting specification based on another pergola. Confirm the requirements for your specific system before purchasing electrical materials or completing a rough-in.

This guide explains the practical planning process for the Bloomcabin pergola, the Bloomcabin bioclimatic aluminum pergola and the Bloomcabin lean-to pergola. Final electrical work should be completed or approved by a qualified electrician familiar with outdoor installations and the requirements that apply at your property.

What needs electrical power in a motorized pergola?

A motorized louvered pergola may have several electrical elements. Which ones are included or optional depends on the ordered configuration. Establish the complete equipment list before designing the power supply.

• Louver motor: The actuator moves the adjustable roof louvers between their available positions.
• Control equipment: A receiver, controller, power supply or related enclosure may manage motor operation.
• User controls: Operation may involve a compatible handheld control, wall control or another specified interface.
• Lighting: Integrated or accessory lighting may require its own driver, controller, switching arrangement or power connection.
• Optional accessories: Additional powered equipment must be evaluated individually rather than added to the louver circuit automatically.

A pergola can therefore require more planning than simply placing an outdoor receptacle nearby. The electrician needs to understand where power enters the structure, where each controller or driver belongs, and how service access will be retained after installation.

If you are still deciding whether an adjustable roof is appropriate, review bioclimatic versus standard pergolas and the broader explanation of how a bioclimatic pergola works. These resources help distinguish a motorized roof system from a conventional open-roof structure.

Information to confirm before electrical rough-in

Do not design the rough-in from photographs or general product descriptions. Obtain the current order-specific information and give it to the electrician. At minimum, confirm the following points.

1. Final pergola model and layout. Determine whether the structure is freestanding or attached and identify its orientation on the site.
2. Motor and control specifications. Use the documentation assigned to the ordered system to establish its electrical characteristics and connection method.
3. Accessory list. Record whether lighting or other powered options are included now or genuinely planned for later.
4. Power-entry location. Confirm where the electrical route is intended to meet the pergola and whether that location remains accessible during assembly.
5. Component locations. Identify the approved positions for controllers, receivers, drivers, junction points and user controls.
6. Permitting and inspection responsibilities. Ask the relevant local authority and electrician what applies to the project.
7. Installation responsibilities. Establish who assembles the pergola, who runs wiring, who makes final terminations and who tests operation.

Review the pergola size guide and compare wall-mounted and freestanding pergolas before fixing the layout. A change in orientation, post position or wall connection can affect the practical electrical route.

Plan the pergola and electrical work as one site system

The foundation, drainage, structural anchoring and electrical route occupy the same project area. They should be coordinated on one site plan rather than handled as separate decisions.

Project item	Electrical question	Why coordination matters
Foundation or footing	Will an approved raceway or cable route approach through or beside this area?	Unplanned routes may conflict with anchoring locations or finished concrete.
Patio surface	Must any underground work be completed before paving?	Later trenching can damage a completed patio.
Pergola posts	Which post, if any, is designated for the planned power approach?	Post choice affects cable length, routing and installation sequence.
House wall	Where can power safely pass from the building to an attached pergola?	The route must account for the exterior wall and weather exposure.
Roof and drainage	Will electrical components remain clear of intended water paths?	Drainage must not be obstructed or redirected by electrical work.
Controls	Can the operator see the moving louvers from the control position?	Visibility supports deliberate operation and easier troubleshooting.

Start with the pergola foundation and patio preparation guide. The electrical contractor should also see the final pergola placement drawing before underground or concealed work begins.

Freestanding and wall-mounted electrical routes

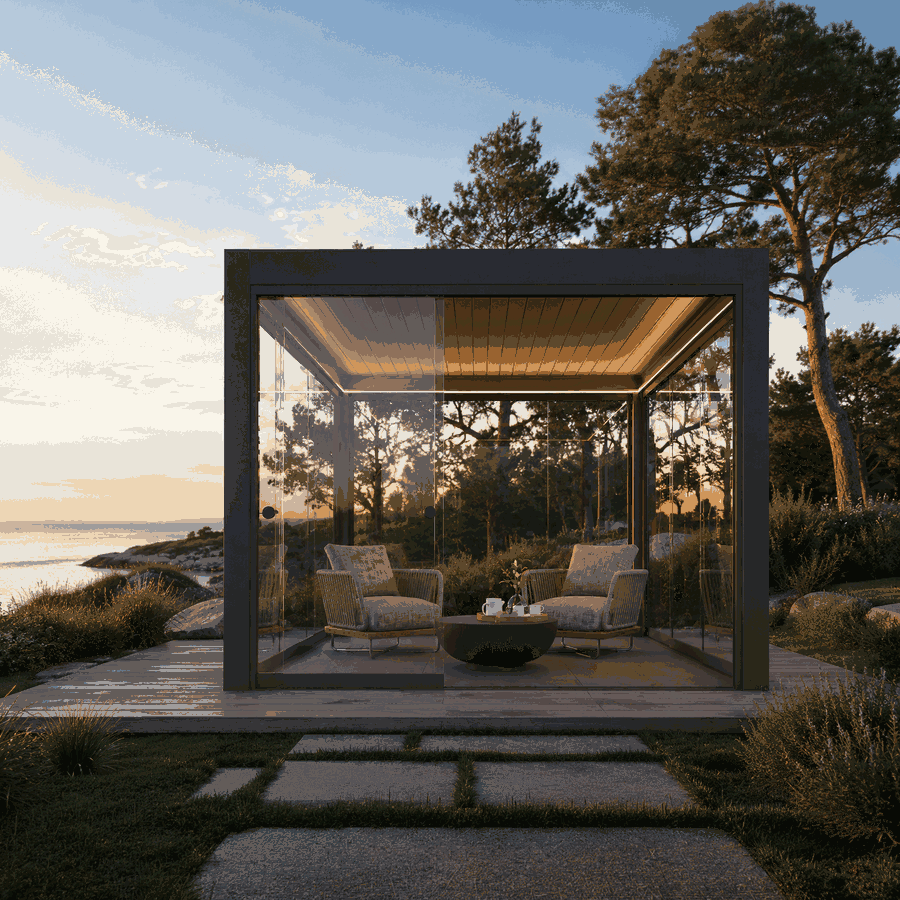

Freestanding pergola

A freestanding pergola usually requires a planned route from the building or another approved supply point across the site. That route may interact with soil, paving, footings, irrigation, landscape lighting and drainage. The electrician must select the permitted wiring method and determine how it transitions into the pergola.

Mark all post and anchor areas before trenching. Do not place a conduit, cable or junction point based only on an approximate pergola outline. A small placement error can put the route beneath an anchor location or outside the intended post area.

Wall-mounted pergola

An attached pergola may be closer to an existing building supply, but it introduces other coordination issues. Wall construction, cladding, waterproofing, attachment points, door and window openings, and the location of existing utilities all matter. Penetrations should not be improvised during pergola assembly.

The aluminum pergola selection guide and patio and backyard pergola ideas can help establish the intended use and layout before utility routes are fixed.

Power supply and circuit planning

There is no responsible universal answer for circuit rating, voltage, breaker selection or conductor size without the specific equipment information and site conditions. The electrician should design the supply from the confirmed motor, controller, lighting and accessory requirements.

The assessment should include:

• the electrical data for every connected component;
• whether equipment is supplied from one system or requires separate connections;
• the total route length and relevant installation conditions;
• the outdoor and wet-location exposure of each part of the route;
• required disconnecting, switching and protective arrangements;
• access for testing, isolation, repair and future replacement;
• the effect of other loads already served by a proposed circuit; and
• applicable national, state, county, city and property-specific rules.

Do not extend a convenient patio receptacle, reuse an unidentified landscape cable or assume that low-voltage lighting and a louver motor can share wiring. Equipment that appears physically similar may have different power and control requirements.

Local approval can involve more than the pergola structure itself. Read the general greenhouse and pergola permit guide, then verify the current requirements for your address. Bloomcabin product information does not replace a local electrical assessment.

Separate line-voltage and control wiring correctly

Motorized systems can contain power wiring, low-voltage output wiring and communication or control connections. Their appearance does not establish how they may be routed. The equipment documentation and applicable electrical rules determine required separation, enclosure, connector and cable provisions.

Ask the electrician and installer to label both ends of every prepared route. Labels should identify the destination or intended function without relying on wire color alone. If a raceway is installed for future use, record where it starts, where it ends and whether a pull line remains available.

Important: Never energize unidentified conductors or connect a motor, light or controller by trial and error. Incorrect connections can damage equipment and create a safety risk.

Louver motor and control placement

The motor and its control equipment are parts of an integrated product system. Their mounting, orientation and connection should follow the documentation for the supplied pergola. Avoid relocating a component merely to make the electrical route shorter.

A suitable control arrangement should support normal operation while preserving access for inspection. Consider whether furniture, glass walls, screens or landscaping could block access later. If a wall control is planned, choose a practical location where accidental operation is unlikely and the user can observe the pergola.

Remote operation should not be treated as permission to operate the roof without checking conditions. Before moving the louvers, look for ice, snow, debris, branches or any obstruction. The winter pergola care guide explains seasonal considerations, while the louvered pergola comparison discusses roof operation, rain and enclosure choices.

Planning pergola lighting

Lighting should be selected as part of the order and electrical design, not treated as a generic strip added to the frame. Confirm whether lighting is supplied with the pergola, where it is intended to mount, what compatible driver or controller it uses and how it will be switched.

Questions to answer before choosing a lighting layout

• Is the goal dining light, general ambient light, task light or a combination?
• Which structural locations are approved for the selected lighting components?
• Where will the driver or control equipment remain accessible?
• Will the lighting operate independently from the louver motor?
• How will glare affect seated users, adjacent windows and neighboring properties?
• Could future glass walls or screens affect fixture access or light distribution?
• How will cables and connections be protected from weather and moving roof parts?

Do not drill beams, posts, louvers or gutters to install third-party fixtures without written confirmation that the proposed location and method are appropriate. Drilling can interfere with structure, finishes, drainage or concealed system elements. Electrical components must also remain clear of moving mechanisms and designed water routes.

If glass walls are being considered, coordinate them before fixing controls and lighting. The pergola glass wall guide explains fixed and sliding enclosure planning.

Prepare for future accessories without overbuilding

Customers sometimes want to prepare for lighting or controls that may be added later. Future planning can be sensible, but it should not be based on an assumed accessory specification. A spare route is not automatically suitable for every future product.

Document the intended destination, provide accessible endpoints where permitted and keep the route clear of anchors and drainage. Before adding equipment, confirm compatibility, electrical demand, control requirements and approved mounting methods. An electrician should reassess the system rather than assuming that an unused conductor or raceway is ready to energize.

Installation sequence

1. Choose the pergola configuration. Finalize freestanding or wall-mounted construction, orientation, approximate use zones and selected powered options.
2. Confirm the site plan. Mark posts, attachments, doors, paving edges, drainage, existing utilities and the proposed supply origin.
3. Collect current documents. Obtain order-specific drawings, electrical information and installation instructions before rough-in.
4. Complete local checks. Determine which permits, inspections or approvals apply to the structure and electrical work.
5. Coordinate trades. Have the pergola installer, foundation contractor and electrician agree on routes, endpoints and timing.
6. Install approved concealed routes. Complete work that must precede concrete, pavers or wall finishes, but leave final positioning flexible where the documentation requires field verification.
7. Verify the delivered system. Check component labels and instructions against the planned supply before connection.
8. Assemble before final electrical connection. Follow the prescribed pergola sequence and avoid using electrical cables to pull or position structural parts.
9. Complete and test connections. The responsible electrical professional should test protection, controls, lighting and isolation arrangements.
10. Demonstrate operation. The owner should learn normal operation, safe isolation and the location of relevant documents.

Ordering and project administration should also be reviewed early. See how to order, the purchase and delivery terms and the warranty information. Do not schedule permanent electrical connections solely around an estimated arrival assumption.

Delivery-day and pre-installation checklist

• Keep electrical equipment dry, protected and identified during storage.
• Compare received components with the order documentation.
• Check packages and visible components for transit damage before installation.
• Do not discard labels, wiring information, controls or small component packages.
• Confirm that the planned power-entry point matches the delivered configuration.
• Keep prepared cables safely isolated until authorized connection.
• Photograph concealed route locations before the patio or wall is closed.
• Record breaker, controller, driver and control locations for the owner.

General product questions are covered in the aluminum pergola FAQ.

Commissioning the motor, controls and lights

Commissioning is more than confirming that the louvers move. The installer and electrician should verify that the system is connected according to its documentation, controls correspond to the intended equipment and cables do not interfere with moving parts.

Operate the louvers through the instructed range while watching and listening for abnormal movement. Test each user control and lighting command separately. Confirm that the owner knows how to stop operation and isolate power if unusual behavior occurs. Any setup, pairing or limit procedure must follow the supplied instructions; do not copy settings from a different system.

Retain manuals, diagrams, model information and commissioning notes together. Manuals should match the delivered equipment revision. If a document appears inconsistent with a component label, pause and request clarification rather than improvising.

Maintenance and troubleshooting

Routine care begins with observation. Keep accessible components clean according to their instructions, maintain drainage paths and inspect visible cables, covers and enclosures for damage or displacement. Do not open electrical equipment unless qualified and authorized to do so.

Symptom	Safe first checks	Next action
Louvers do not respond	Check for visible obstruction and whether the normal control appears available.	Stop repeated attempts and follow the system instructions or contact the appropriate service professional.
Motor starts but movement appears abnormal	Release the control and look for debris, ice or physical interference.	Isolate the system if instructed and arrange inspection.
Lighting does not operate	Confirm the intended lighting control is being used and note whether other functions work.	Have the driver, control and supply assessed without opening sealed components.
Protective device operates	Leave it off if it operates again or if moisture or damage is suspected.	Ask a qualified electrician to identify the cause.
Remote control is inconsistent	Follow approved battery or pairing checks in the correct manual.	Do not alter motor wiring to solve a control issue.

Never force frozen or obstructed louvers. Seasonal inspection is especially important after storms, construction work or landscape changes.

Coordinating a pergola with other Bloomcabin structures

A property may include several outdoor structures, each with different electrical needs. Do not apply pergola assumptions to a greenhouse or orangery. If the site plan includes an Aluminum Classic greenhouse, Classic Plus 385, Bloomcabin Orangerie, aluminum lean-to greenhouse or Garden View T greenhouse, place all structures and utility routes on one coordinated plan.

The same principle applies to a Bloomcabin Classic Premium greenhouse. Greenhouse climate equipment can involve different controls and operating conditions, as outlined in the overview of smart aluminum greenhouses. Separate project documentation prevents circuits, controls and buried routes from being confused.

Frequently asked questions

Can an electrician prepare the supply before the pergola arrives?

Yes, preparatory work may be possible when current order-specific drawings and electrical information are available. However, final connection points should be verified against the delivered components. Avoid completing irreversible work from generic photographs or estimated post positions.

Can I use an existing outdoor outlet?

Possibly, but proximity alone does not establish suitability. An electrician must assess the outlet, circuit, existing loads, protection, wiring method and equipment requirements. An extension cord is not a substitute for a properly designed permanent installation.

Does every louvered pergola use the same motor voltage?

No assumption should be made. Use the electrical data associated with the exact supplied motor and controller. Product configurations and equipment can differ.

Should the pergola motor and lights use one circuit?

That decision depends on the supplied systems, combined electrical demand, control arrangement and applicable requirements. Give the electrician complete motor and lighting documentation so the circuit design can be evaluated as a whole.

Can wiring be hidden inside a pergola post?

Only use a route approved for the particular pergola and electrical installation. A hollow-looking structural member is not automatically an electrical raceway. Routing must not interfere with anchors, drainage, assembly hardware or structural functions.

Can I add lighting after installation?

It may be possible to add compatible lighting later, but the accessory, mounting method, cable route and power supply must be assessed first. Do not drill the frame or attach generic fixtures without confirming suitability.

Where should a wall control be installed?

Choose an approved, practical location protected as required for the environment. The user should ideally be able to see the moving roof, and the control should not be placed where it is easily operated accidentally. Exact mounting requirements come from the supplied control documentation and local assessment.

Can controls be operated when the pergola is out of sight?

Seeing the pergola before and during movement helps the user identify people, objects, ice or debris that could obstruct operation. Even if a control can transmit from another location, inspect conditions before moving the louvers.

What happens if glass walls are added later?

Glass walls can affect access, furniture layouts, switch positions and light distribution. Include likely enclosure zones in the initial plan and avoid locating serviceable electrical components where future panels could block them.

Who should make the final electrical connection?

Use a qualified electrical professional as required for the project and location. Pergola assembly and electrical connection are different responsibilities, even when closely coordinated.

What records should I keep?

Retain the order confirmation, final layout, product instructions, electrical diagrams, equipment labels, commissioning notes and photographs of concealed routes. Also record which breaker or disconnect serves the pergola and keep control instructions accessible.

What should I do if the supplied documentation does not match the rough-in?

Do not adapt the components or energize the system by guesswork. Pause the installation, compare model information and obtain clarification. Altering a finished rough-in is preferable to connecting incompatible equipment.

Final planning checklist

• Final pergola model, orientation and post locations confirmed
• Motor, controller and lighting documentation obtained
• All powered options listed
• Foundation, drainage and electrical routes coordinated
• Local permit and inspection questions checked
• Approved power-entry and component locations identified
• Outdoor wiring method designed by the responsible professional
• Future glass walls, screens and furniture zones considered
• Trade responsibilities and installation sequence agreed
• Final connections tested and owner operation demonstrated
• Manuals, labels and route photographs retained

Good electrical preparation does not mean guessing every detail months in advance. It means fixing the pergola layout, gathering the correct system information and coordinating the foundation contractor, pergola installer and electrician before work becomes concealed. That process produces a cleaner installation and makes the motorized louvers, controls and lighting easier to operate and maintain.
