Assembly Manuals, Technical Drawings and Product Documentation

A practical guide to using assembly manuals, drawings, parts lists and supporting product documents—from planning and delivery checks to documented handover.

Assembly manuals, technical drawings and parts lists work together to support a controlled installation. They help with site planning, delivery checks, assembly order and later maintenance. The key requirement is that every document matches the exact product, ordered configuration and current delivery scope.

The document library at the top of this page is the starting point for available manuals. This guide shows how to build a reliable document set and avoid common misunderstandings. For product-specific questions or conflicting information, request clarification through the Bloomcabin contact page before work begins.

Bloomcabin product documents that may be available

The documentation provided depends on the product type, model, configuration and accessories. Not every document will necessarily be a separate file; information may be combined in one manual or supplied as order-specific documentation.

A complete document set may include:

• an assembly manual with work stages and illustrations,
• technical drawings with views, dimensions and component references,
• foundation or site-preparation guidance,
• quantity, package or parts lists,
• documentation for doors, windows, roof systems or other accessories,
• guidance for receiving, storing and checking the delivery,
• care, operation and maintenance information,
• order-specific supplements or revision sheets.

A product page does not replace these documents. It helps with product selection, while assembly documentation addresses the specific installation. This matters particularly when comparing different formats, such as a wall-mounted and freestanding pergola or a bioclimatic and standard pergola.

Documents to review before buying

Document checks should begin before installation day. Before ordering, establish the principal external dimensions, product form, access to the site and whether the intended area is broadly suitable. For pergolas, the pergola size guide can support this early review. For greenhouses and conservatories, the greenhouses and conservatories overview provides product-focused orientation.

Also determine whether the project needs a permit, a property-specific review or technical assessment. In Canada, the applicable code and approval route can vary by province or territory and municipality, as well as by the property and type of structure. The guide on whether a greenhouse or pergola needs a permit offers an initial overview, but it does not replace checking the requirements that apply locally.

Delivery access, the unloading area and temporary storage also belong in the planning process. See shopping and delivery and the guidance on buying a greenhouse with cross-border delivery where relevant to the intended delivery location.

Match every manual to the exact product

A similar appearance does not mean an identical construction. Two models may differ in profiles, connection points, roof structure, door systems, glazing or accessories. Different sizes within one product family can also require different quantities or assembly sequences.

Never use a manual simply because its illustrations resemble the delivered product. At minimum, match the model name, configuration, size and, where applicable, document revision. This applies equally to distinct sauna models such as the Elma S outdoor sauna, the HC150 barrel sauna or the HC 180 barrel sauna. Documentation for another model is not a dependable substitute.

How to identify the correct document set

Start with the order confirmation and compare its product details with package labels, parts lists and document titles. Then assemble a document set covering the main product, size variant and every ordered option.

1. Check order details: Record the model name, configuration and ordered options.
2. Compare document titles: Use only files with an unambiguous product match.
3. Confirm the document version: Record the revision date, version number or other identifier where shown.
4. Include supplements: Add separate manuals for accessories or different components.
5. Hold conflicting information: Do not independently choose between different dimensions or assembly instructions; have the discrepancy clarified.

Keep original files unchanged. Working copies may be marked up, but should remain clearly identified as copies. For ordering guidance, see how to order.

How to read technical drawings correctly

Begin with drawing identity

First read the title block, heading or document header. It may state the model, drawing title, revision, date, unit and sheet number. Transfer dimensions only after confirming this identity. Where a drawing has several sheets, all sheets must belong to the same set.

Watch for revision notes. A newer revision may replace individual dimensions or details, but this does not automatically make every older drawing wrong for a product already delivered. The correct document is the one assigned to the specific order.

Understanding the different views

Plans, side elevations, front elevations, sections and detail views each communicate different information. A plan normally shows the horizontal layout. Elevations show heights and external outlines. Sections reveal hidden components or layers. Enlarged details explain connections that may not be clear in the overall view.

Dashed lines may indicate hidden edges. Dimension lines, centre lines and reference points are not components. Also read notes about symmetry, repeated elements and mirrored installation. A drawing must be interpreted as a coordinated system, not as isolated numbers.

Keep product dimensions separate from site dimensions

External product dimensions, centre-to-centre dimensions, foundation dimensions and required working space may differ. Do not automatically transfer an external dimension to the foundation. Opening dimensions, overhangs, drainage areas and assembly access must also be considered separately.

Rely on stated numerical values only. A PDF on screen or a printed copy may be scaled. Measuring with a ruler or screen tool is appropriate only if the document is explicitly drawn to scale, the scale has been checked and no stated dimension takes priority. When in doubt, use the written dimension, not the visual proportion.

Foundation and site documents

The foundation is the geometric interface between the ground and the product. Errors in level, position or squareness are often impossible to correct by moving individual profiles during assembly. Read the assembly and foundation documents together before excavation, formwork or fastening begins.

The pergola foundation guide explains key planning considerations. Product-specific foundation information and local site conditions remain decisive. Check, among other things:

• location and orientation on the property,
• access for installation and future maintenance,
• level, height references and diagonals,
• ground-bearing capacity and soil conditions,
• drainage and prevention of unwanted water accumulation,
• locations of utilities, connections and fixing points,
• locally applicable construction and technical requirements.

For saunas, also verify the requirements that apply to the specific site and selected equipment for connections, operation and safety. The general sauna overview is a product-selection resource, not a substitute for order-specific planning documentation.

Receiving the delivery and checking parts

Plan delivery inspection as a separate stage. Compare the number and identification of packages with the available delivery documentation. Record visible damage, missing packages or unusual packaging promptly and clearly. Open packages carefully to avoid damaging components, surfaces or labels.

Sort components by assembly group and part number. Store long profiles so unsuitable support points cannot bend them. Glass, panels, timber components, hardware and fixings each need suitable, secure temporary storage. Follow the supplied instructions.

Check against the parts or package list, not product photos alone. Record quantity discrepancies with the exact item reference and take clear photographs. General information about coverage and conditions is available under warranty ; keep the relevant order and delivery details ready for a specific case.

Using the assembly manual effectively

Prepare before the first connection

Read the complete manual at least once. Establish which tools, aids, people and safe work areas are required for each stage. Check the foundation, components and document set before making the first permanent connection.

Keep screws and hardware in labelled containers. Similar-looking fasteners must not be mixed. Protect coated surfaces from hard or dirty supports. Remove protective materials only at the stage specified.

Follow the sequence

Assembly sequences often account for access, alignment and the later installation of further components. A frame tightened too early can prevent later adjustment. Skipping a seemingly small bracket can mean dismantling larger assemblies later.

Mark completed stages on a working copy. Stop if an illustration does not match the actual assembly. Then check the part name, orientation, previous stages and document version. Product photography, including articles about Victorian greenhouses or orangeries, shows design and use, not a binding assembly sequence.

Check fasteners and adjustments

Use only the fasteners specified for the relevant step. Length, head geometry, washers and position can be structurally important. Do not fully tighten every connection immediately where the manual calls first for loose assembly or later alignment.

During assembly, repeatedly check plumb, level, alignment, diagonals and even gaps. Finding a deviation early usually makes its cause easier to identify. Do not use extra drilling, packing pieces or force as an improvised correction before checking product identity, foundation geometry and installation direction.

Anna Koku Skola as one continuous installation sequence

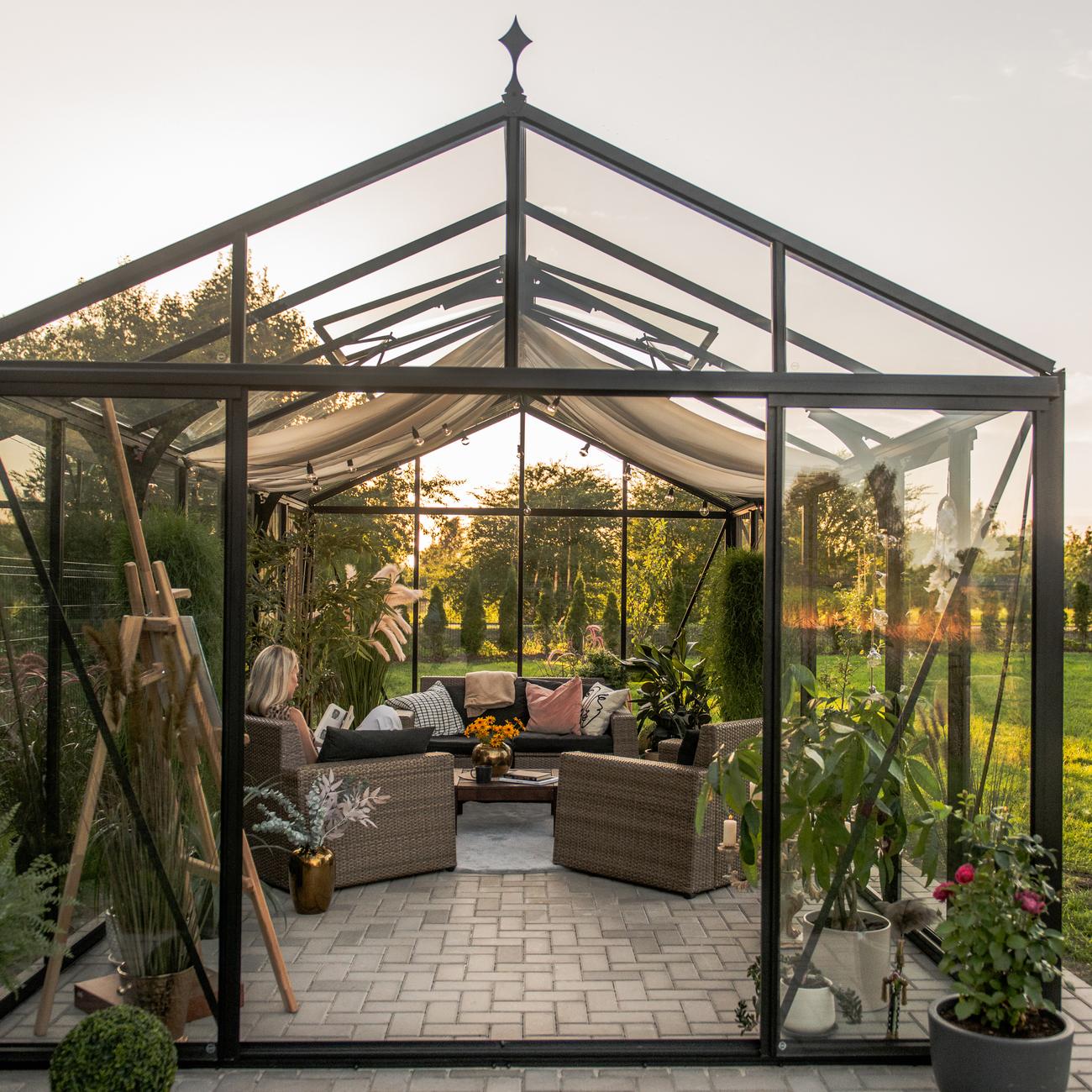

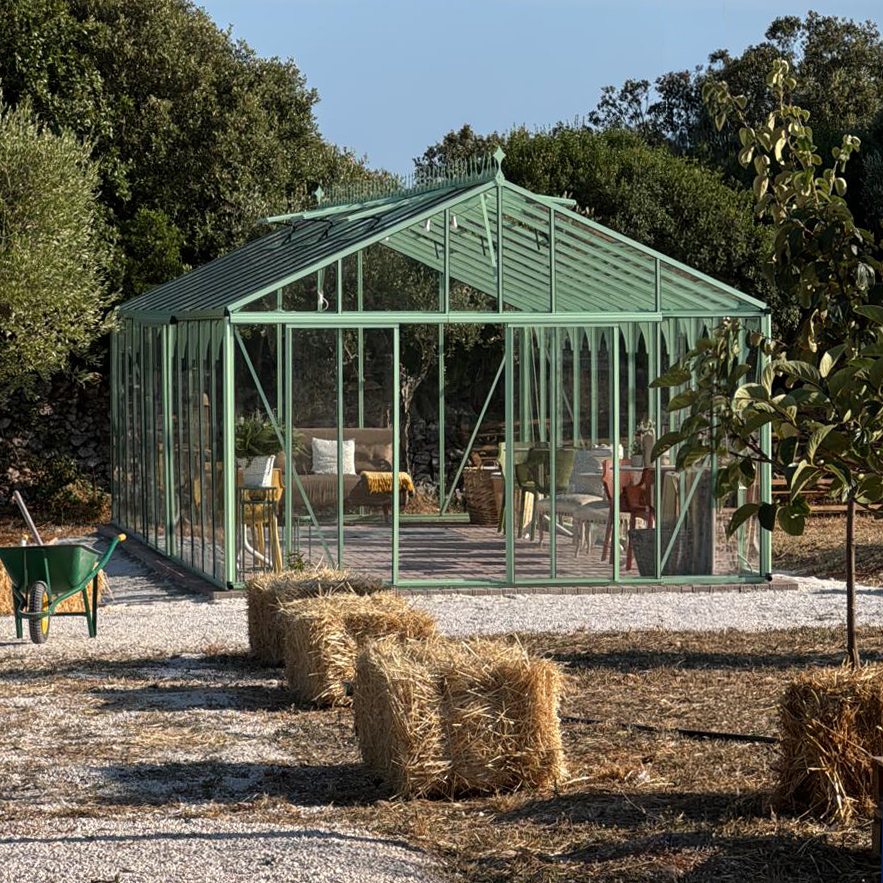

The Anna Koku Skola image sequence should be read as documentation of one installation. The images show consecutive stages of the same build, not independent projects. Changes in the visible frame, glazing or work environment reflect installation progress.

Such a sequence can aid spatial understanding, from the prepared site and supporting structure to later completion stages. It remains a visual supplement, however. Do not derive concealed fixings, exact dimensions, tightening values or the order of unshown intermediate steps from a photograph. The associated technical documents take priority.

Document control during installation

When several people are working, it must be clear which document version applies. One person should manage the document set and record changes or open points. Remove outdated printouts from the work area or clearly mark them.

Checkpoint	Practical measure
Document version	Compare the filename, revision and date before work begins
Distribution	Use identical approved copies for all installation teams
Discrepancy	Stop work on the affected section and document the cause
Change	Store the new document centrally and withdraw old copies
Record	Store photos, measurements and open points in an orderly way

This simple document-control process prevents one team working from an earlier drawing while another is already using updated information.

Handover and maintenance documents

Do not discard the document set once assembly is complete. It is needed for maintenance, spare-part identification, later adjustments and safe handover to future owners or operators. Save digital originals in addition to working copies.

A handover file can include the order record, final drawings, assembly manual, accessory documentation, care guidance, documented deviations and photos of concealed connections. Add the installation date and the name of the configuration actually installed.

For a greenhouse, the page on maintaining an aluminium greenhouse is a useful supplement. The guides to greenhouse temperature and humidity and polycarbonate and multiwall panels also offer practical information about climate and use.

Further information for planning and use

Technical documentation explains how a specific structure is prepared, assembled and maintained. It does not automatically answer every selection or use question. Read supplementary articles separately from binding assembly documentation.

For greenhouse-use planning, the guides to growing lettuce in a greenhouse and growing peppers and chillies provide practical orientation. Those planning a pergola can explore whether a bioclimatic pergola with roof system is suitable. More topics are collected in useful information .

Frequently asked questions

Where can I find Bloomcabin assembly manuals in Canada?

Use the document library at the top of this page. Search by the full model name and configuration. If the match is not clear or an ordered option is missing, request the appropriate document before assembly starts.

Can I use the manual for a similar Bloomcabin model?

No, not as a replacement for the correct manual. Similar products can have different profiles, drilling patterns, fasteners or assembly sequences. Another manual may help you describe a question, but it cannot replace order-specific documentation.

What if ordered options are missing from the main manual?

Check whether a separate accessory manual or supplement is available. Match each supplement to the relevant assembly stage. If information is missing or documents conflict, stop work on the affected section and have the document assignment clarified.

Should the foundation be completed before I read the assembly manual?

No. Read the manual and all foundation guidance first. This allows fixing points, external dimensions, height references, access and potential service routes to be included in site planning. A completed foundation that does not fit may require substantial correction.

Can I take dimensions from a drawing displayed on screen?

Not without clear scale verification. Browsers, PDF software, printer drivers and displays can enlarge or reduce drawings. Use stated dimensions. Only drawings explicitly issued to scale and checked accordingly may be evaluated at their stated scale.

What should I do if a component does not fit?

Do not use excessive force or alter the component on the spot. Check the part number, orientation, installation side, preceding stages, foundation geometry and the document revision in use. Record the situation with overall and detail photographs, together with the relevant item references.

How do I report a missing or damaged part?

Have the order number, product name, package identification, part number and required quantity ready. For damage, include clear photos of the packaging and component. A precise report makes matching easier than a general description such as “a profile is missing.”

Are product photos suitable as assembly instructions?

No. Photos can show design or an assembly stage, but they cannot reliably reveal concealed connections, exact dimensions or intermediate steps. The illustrated product may also have a different size, option or configuration.

Can several installers work from different printouts?

Only if all copies demonstrably have the same approved revision. Otherwise, conflicting work stages may result. Appoint a person responsible for documents and replace outdated copies completely.

Which documents should remain with the product after installation?

Keep at least the clear product identification, final assembly and maintenance documents, accessory records, relevant order confirmations and documentation of special installation details. Store the documents in a dry, accessible place and back them up digitally.

Does the assembly manual replace site-specific professional planning?

No. A product manual cannot automatically assess soil conditions, local wind and snow conditions, property lines, existing buildings, utilities or municipal requirements. Where professional, regulatory or technical review is required, it must be completed for the specific site.

Final documentation checklist

• Product, size, configuration and options match the order.
• The current assembly manual has been read in full.
• Drawings and supplements demonstrably belong to the delivered product.
• Foundation and site requirements were checked before work began.
• Packages and individual parts were inspected and discrepancies recorded.
• All installation teams use the same document revision.
• Dimensions are taken from stated values, not unchecked screen displays.
• Unclear fit is investigated, not resolved with force or improvised changes.
• Care, maintenance and accessory documents are added to the handover file.
• Digital originals, work records and useful photographs remain permanently accessible.

Well-managed documentation reduces misunderstandings, makes decisions traceable and supports the product throughout its life—from ordering and installation to maintenance.
