Planning a Sauna Heater and Electrical Connection

An electric sauna heater must suit the actual sauna room, controls and available electrical installation. This guide outlines the information to gather before buying, how to interpret nameplate data and what to review with a qualified local electrical contractor.

Electrical planning for an outdoor sauna does not begin with selecting a breaker. Consider the sauna room, heater, controls, sensors and installation location as one system first. Only then can the required supply, protective measures and cable routes be assessed.

This guide covers technical planning for private outdoor saunas in Canada. It does not replace the manufacturer's installation instructions or an assessment by a qualified local electrical contractor. Use the documents supplied with the actual components and the requirements adopted in your province, territory and municipality. In Ontario, almost all electrical work requires an ESA notification before work starts; when the work is hired out, a Licensed Electrical Contractor arranges the notification and applicable inspection process.

What an electric sauna heating system includes

The sauna heater is only one part of the heating system. Depending on the design, technically matched components may also be needed:

• Sauna heater: Heating appliance with heating elements, stone compartment, connection area and specified safety clearances.
• Sauna stones: Stones suitable for the specific heater, installed in the stated size, quantity and arrangement.
• Controls: Integrated with the heater or supplied as a separate control unit.
• Power unit: A separate switching unit for the heater's electrical load on some systems.
• Temperature sensor and safety temperature limiter: Monitor temperature at the specified position.
• Control panel: Local user interface inside or outside the sauna room, depending on the system.
• Connection and sensor cables: Cables suitable for the temperature range, installation location and manufacturer requirements.
• Protective devices: Circuit protection, ground-fault protection where required, and potentially a disconnecting or shut-off arrangement.

Do not assume every component is included. Check the documents for the exact product. See the Sauna section for an overview of different designs. Similar-sized cabins can still require different heater configurations.

Start with the sauna room, not the panel

Heater selection depends on the room's effective heating load. Interior volume is an important starting point, but not the only one. Glazing, uninsulated or highly conductive elements, door surfaces, room shape, airflow and outdoor conditions affect warm-up behaviour.

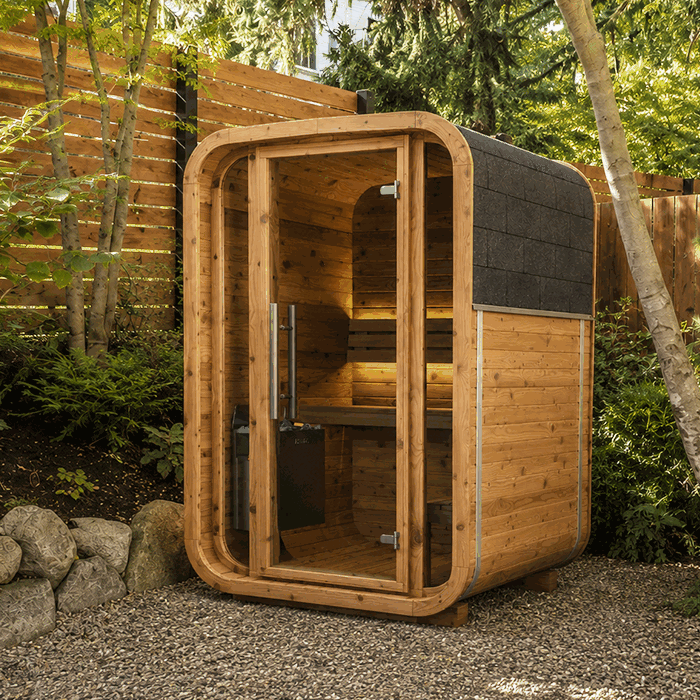

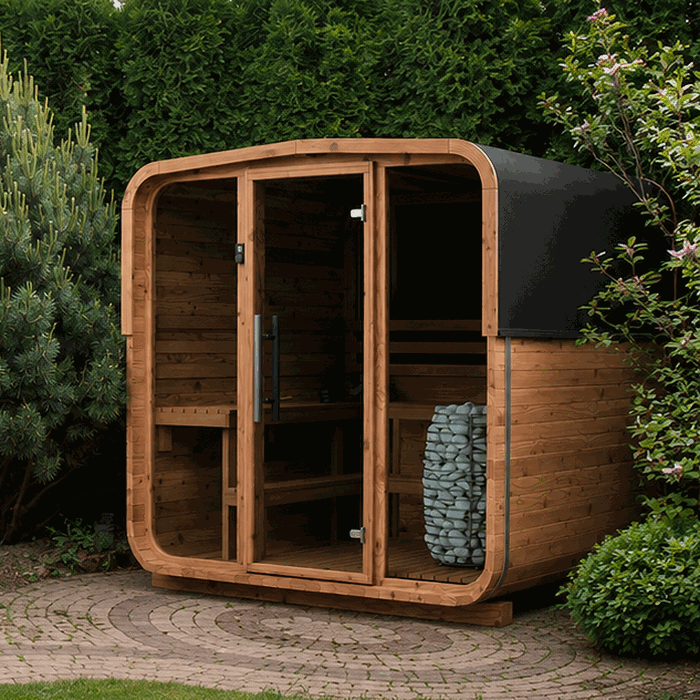

A compact Elma S outdoor sauna and the larger Elma L outdoor sauna should therefore not be treated as electrically identical based on appearance alone. The same applies when comparing an HC150 barrel sauna with longer barrel models.

More heating capacity is not automatically better. It can alter control performance and demand unnecessarily high connection capacity. An undersized heater may run for a long time, struggle to reach the set temperature or create uneven temperatures. Follow the heater and sauna manufacturer's sizing guidance.

Information needed for a reliable heater recommendation

• exact sauna model and intended installation configuration;
• clear internal dimensions and calculated interior volume;
• area and type of glazing, stone or other surfaces that are not conventionally insulated;
• documented wall, ceiling and floor construction;
• planned heater location and possible mounting method;
• clearances to benches, walls, door and heater guard;
• sauna location plus length and route of the planned supply cable;
• available electrical supply and spare capacity in the distribution panel;
• preferred local or remote-control functions.

When unsure, send the product name, floor plan and site photographs together. The Contact page can help with product-specific questions.

Reading a sauna heater's electrical data

Advertising and short descriptions often state only heating output. That is not enough for electrical planning. Use the nameplate, wiring diagram and installation manual for the exact appliance version.

Information	Why it matters for planning
Rated output	Electrical input of the heater under the stated operating conditions.
Rated voltage and supply type	Identifies the supply and connection configuration intended for the appliance.
Rated current	A basis for selecting conductors, switching equipment and protective devices with the installation method and manufacturer instructions.
Phase and terminal arrangement	Defines the permitted electrical connection. It must not be estimated from output.
Control type	Shows whether a control panel, power unit and sensors are additionally required.
Protection rating and installation location	Limits where a component may be installed.
Cable requirements	May specify conductor size, temperature resistance and connection conditions.

Do not calculate current from an advertised wattage alone. Internal wiring, phase count, control components and the exact equipment version all affect the result. Ask the electrical contractor to verify the specific model and any destination-specific approval or certification before installation.

Dedicated circuit, protective devices and disconnecting means

An electric sauna heater is a substantial load used over an extended period. Planning will commonly consider a properly designed dedicated circuit. A qualified local electrical contractor must determine whether a disconnecting means, ground-fault protection or other protection is required from the appliance, existing installation and locally applicable rules.

A receptacle that physically accepts an accessory plug says nothing about suitability for the heater. Extension cords, portable cable reels and temporary garden outlets are not a planned supply for a permanently installed sauna heater.

Questions for the electrical contractor

• Is the existing service and distribution capacity sufficient?
• What supply and connection arrangement does this exact heater require?
• What cable is needed for the planned length and installation method?
• Which protective devices are required by the manufacturer documents and site conditions?
• Where may the connection or junction point be located?
• How will the installation be safely isolated and protected from reconnection?
• Are trenching, conduit or distribution-panel changes required?
• What testing and documentation will be provided on completion?

Service capacity and distribution planning

An unused panel space does not automatically mean adequate electrical capacity. Review the service, upstream protection, distribution equipment, simultaneous loads, cable routes and existing major loads. These may include a heat pump, EV charging equipment, tankless water heater, electric range or other garden equipment.

Consider the sauna as part of the complete garden project. Lighting, outdoor receptacles, pumps, pergola drives or a future garden building may require additional circuits. Forward planning can reduce later trenching and alterations, but never justifies oversizing the sauna heater's protective devices.

Cable routing and heat exposure

An outdoor sauna includes several electrical environments: soil or exterior conditions, possibly a service area and the hot interior. A cable suitable in a cool location may not be suitable near the sauna ceiling or heater connection.

Set the cable route before foundation and assembly work. Consider mechanical protection, moisture, UV exposure, permitted bend radii, penetrations and separation between power and sensor wiring. Do not route cables casually across hot surfaces, sharp edges or future fastening points.

Avoid penetrations through roofs and exterior walls where possible. Necessary penetrations must be designed to keep water out of the wall assembly. Do not improvise seals for unused openings with unsuitable materials.

Controls, sensors and remote operation

Sauna heaters may have integrated controls or need a separate controller. With an external arrangement, use the control panel, power unit, temperature sensor and any additional safety devices as the manufacturer-specified matched system. Similar plugs or terminals do not make components from different systems interchangeable.

The manufacturer specifies the temperature-sensor position. It affects both regulation and safety shut-off. Moving it to a cooler position to obtain a higher cabin temperature is unsafe manipulation and can cause dangerous overheating.

Remote-start and app functions often need additional safety logic. Before every remote start, ensure that towels, cleaning tools and other items are not on or too close to the heater. A generic smart-home relay does not replace manufacturer-specified controls.

Grounding, bonding and protection from electric shock

Protective conductors, grounding, bonding and ground-fault protection must be assessed as part of the whole installation. Do not connect metal components together indiscriminately. The electrical contractor determines which conductive parts are included and how protective measures are verified by testing.

A timber building is not inherently low-risk electrically. Moisture, wet skin, outdoor exposure and high temperatures place extra demands on equipment and wiring. Changes made after commissioning can undermine the protective measures that were tested.

Safety clearances and heater guards

Required clearances from timber surfaces, benches, ceiling, door and other components are binding planning dimensions. They come from the installation manual for the exact heater version. General rules of thumb or measurements from a similar-looking heater are not enough.

A heater guard can prevent accidental contact, but it must not obstruct airflow or required clearances. It must be securely installed and must not be used as a shelf or clothes dryer. When comparing layouts such as HC 180, HC 225 and HCF 225, assess the safe heater zone as well as the seating area.

A practical sequence before buying

1. Define the sauna model: Confirm the design, interior, door and glazing areas, and heater position. The guide Choosing a timber, barrel or garden sauna can help with initial comparisons.
2. Review the site: Check access, foundation, drainage, property setbacks and local requirements. The article on whether garden structures may require approval offers useful questions, but confirm the specific sauna with the municipal permit office and applicable provincial or territorial authority.
3. Request a heater recommendation: Provide room information and desired functions to the supplier.
4. Obtain equipment documents: Have nameplate data, wiring diagrams and instructions ready before electrical planning.
5. Engage a qualified electrical contractor: Have the existing installation, cable route and protection concept assessed on site.
6. Separate the cost items: Record sauna, heater system, trenching, supply cable, panel modifications and commissioning separately.
7. Confirm what is included: Complete the order only once it is clear which controls, sensors and connection components are included.
8. Coordinate the installation sequence: Determine which cables are installed before the foundation or assembly, and which connections follow completed assembly.

Ordering information is available under How to Order. Also review logistics under Purchasing and Delivery .

Delivery and inspection of heater components

Before installation, inspect the delivery for visible damage, correct model names and completeness. Compare the nameplate, controls, sensors, control panel, power unit, fixings, sauna stones and documentation with the order confirmation.

Do not repair damaged terminals, kinked sensor cables or distorted housings yourself. Keep packaging and labels until the matter is resolved. Questions about commercial coverage and claims can be considered under Warranty .

Installation and commissioning checklist

• Sauna fully assembled in accordance with installation documents;
• heater model and electrical appliance version checked against the plan;
• heater securely mounted and all clearances verified;
• heater guard correctly secured, if specified;
• stones checked, cleaned and loosely arranged as instructed;
• temperature sensor and safety devices installed exactly in their specified positions;
• power and sensor cables separately routed and protected;
• connection terminals checked to the manufacturer's instructions;
• protective conductors, protective devices and shut-off arrangements checked;
• electrical measurements completed and documented by the electrical contractor;
• ventilation openings clear and not blocked by furnishings;
• first heating cycle supervised;
• controls, shut-off and operating elements tested;
• users instructed in safe operation, isolation and action in the event of a fault.

Initial heating can produce manufacturing or material odours. Ventilate the room as directed by the manufacturer. Unusually heavy smoke, arcing, burning smells or repeated protective-device trips require immediate shut-off and professional assessment.

Maintenance and fault finding

Before every use, check the heater area for objects left behind. Regularly inspect stone arrangement, visible cables, fixings, heater guards, ventilation openings and controls. Crumbling or tightly packed stones can restrict airflow and strain heating elements. Replace and rearrange stones only as directed by the heater manual.

If a protective device trips, do not repeatedly reset it without identifying the cause. Possible causes range from moisture and cable damage to a fault in the heating element, controls or connection. Apparently normal heating does not rule out an electrical fault.

Record the time, operating stage, displayed fault codes and other observations. This information helps service personnel and the electrical contractor. Housings, terminal compartments and control units may only be opened when safely de-energized and by appropriately qualified people.

Integrating the sauna into the wider garden plan

The best technical sauna location considers more than the electrical supply. Walking routes, privacy, drainage, lighting, prevailing wind and maintenance access affect future use. An HCF 300 or LC 225 should therefore be included in the site plan with its real access and service areas.

If a pergola is also planned, the article on choosing a bioclimatic pergola can help organize the site layout. Greenhouses have fundamentally different temperature and humidity requirements; see the guidance on greenhouse temperature and humidity and polycarbonate and insulation performance.

For wider design ideas, explore garden trends. Available building categories include Greenhouses and Conservatories and Garden Houses . More technical content is collected in Useful Information.

Frequently asked questions

Can I use an existing household outlet for an electric sauna heater?

The outlet itself does not answer that question. Many sauna heaters need a different supply and a purpose-planned dedicated circuit. The nameplate and wiring diagram govern. Even for a smaller appliance, a qualified electrical contractor must assess the existing installation and protection.

How do I determine the right heater output?

Start with interior volume and room construction. Include glazing, poorly insulated components, room shape and the manufacturer's calculation. The external length of a barrel sauna or number of seats is not enough for selection.

Should I buy the heater before contacting an electrician?

Ideally, identify a specific heater model first and obtain its technical documents. Complete the purchase only after electrical feasibility and the full system scope are clear. This helps avoid unsuitable equipment versions and unexpected alterations.

Can the breaker be calculated from the advertised wattage?

No. Voltage, phases, rated current, connection method, installation conditions and manufacturer requirements are also needed. The contractor designs conductors and protective devices as a coordinated system while considering the existing installation.

Does every sauna heater have built-in controls?

No. Some heaters have integrated operating controls; others require external controls, sensors and possibly a separate power unit. Before ordering, confirm which components belong together and are included.

May I mount the temperature sensor where it displays my preferred temperature?

No. The manufacturer defines the sensor position. Free placement distorts regulation and can impair safety shut-off. Any later relocation should only follow approved documents.

Can a smart-home relay switch the heater?

Only if the heater system has an expressly intended interface and every safety condition is met. A universal relay must not replace approved controls, interlocks or remote-start monitoring.

What should I do if the protective device trips during heating?

Switch the heater off and do not repeatedly reset it. Record the operating stage and any fault messages. A qualified electrical contractor or authorized service provider must inspect the connection, cable, protective device, heating elements and possible moisture exposure.

Does a wood-fired sauna also need electrical planning?

Yes, if lighting, receptacles, controls or other electrical loads are planned. The heater itself is not an electrical load, but outdoor wiring, moisture protection and cable routing still matter. For a wood-fired heater, ask the municipality and a qualified local installer to verify approval needs, chimney or flue design, clearances, smoke rules and any current fire restrictions.

Can electrical work be completed before the sauna is assembled?

Underground cable, conduit and parts of the distribution system may sometimes be prepared. Final positions for the heater, sensors, control panel and connection points should be checked against the completed structure. Final connection and testing take place on the assembled system.

Which documents should I keep?

Keep the invoice, order confirmation, nameplate data, assembly and operating manuals, wiring diagram, test records, control settings and photographs of concealed cable routes. These records help with maintenance, spare-part identification and future alterations.

Who makes the final electrical decisions?

The heater manufacturer defines equipment requirements. The sauna supplier provides room- and product-specific information. The electrical contractor assesses the existing installation, local conditions and applicable requirements. General online advice must not replace the final connection design.
