Preparing a sauna heater and its electrical supply

An electric heater must suit the finished sauna room, controls and available electricity. This guide explains what to gather before ordering, how to read the appliance label and what to discuss with the electrical contractor.

Do not begin an outdoor-sauna electrical design by picking a breaker. Assess the heated room, appliance, controller, sensors and proposed position together. That complete picture allows the supply arrangement, safeguards and cable path to be designed properly.

This guidance is for private outdoor saunas in Ireland. It does not replace the delivered equipment instructions or a site assessment. If the project includes Restricted Electrical Works, Safe Electric requires a Registered Electrical Contractor to carry out and certify them.

Parts of an electrically heated sauna system

A working installation involves more than the visible heater. The particular configuration may call for several compatible components:

• Sauna heater: Heater body, elements, stone basket, terminals and specified clearances.
• Sauna stones: The specified type, size, amount and arrangement for that heater.
• Controller: Integrated into the heater or supplied separately.
• Load-switching unit: Some arrangements use separate equipment to switch the heater load.
• Temperature sensing and over-temperature protection: Devices that monitor conditions from their designated locations.
• Control panel: User interface inside or outside the room, as the system permits.
• Power and sensor wiring: Wiring suited to the location, temperature and maker’s requirements.
• Electrical safeguards: Circuit protection, residual-current protection and any required isolation or shut-off.

The contents of the package vary, so verify each item against the documents for the product being ordered. Browse the Sauna range; similarly sized cabins may still need different heater configurations.

Assess the heated room before the distribution board

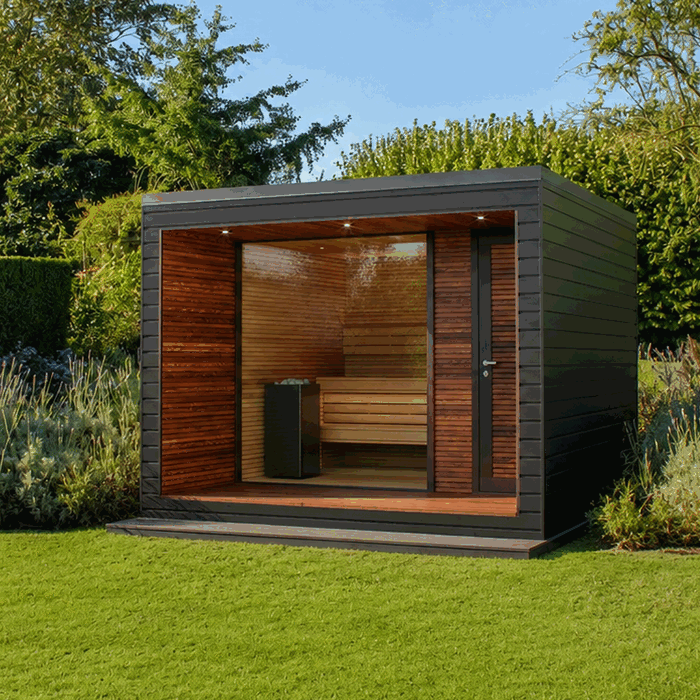

Base heater choice on the room’s effective heating demand. Interior volume is only one factor: glazing, doors, poorly insulated or conductive surfaces, room shape, airflow and outdoor conditions all affect warm-up.

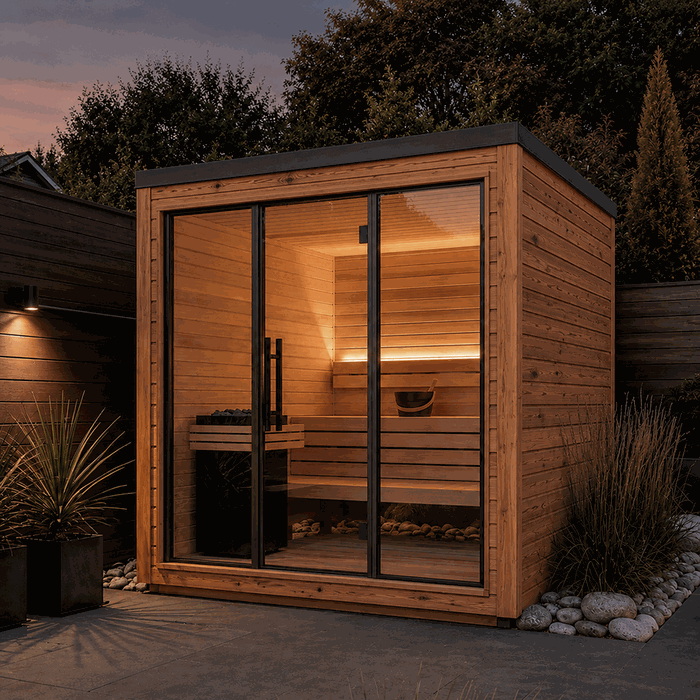

A compact Elma S outdoor sauna and the larger Elma L outdoor sauna cannot simply receive the same electrical specification because their appearance is comparable. Apply the same caution when setting an HC150 barrel sauna beside a longer barrel design.

Oversizing offers no automatic advantage: it can disrupt regulation and create needless supply demand. An undersized heater may run for long periods, struggle to reach the target or distribute heat unevenly. Follow the sizing guidance from both sauna and heater manufacturers.

Details to provide when seeking a heater recommendation

• exact sauna model and proposed configuration;
• finished internal dimensions and calculated volume;
• size and type of glazing, stonework or other poorly insulated surfaces;
• documented floor, wall and ceiling construction;
• proposed heater position and mounting method;
• clearances to seats, walls, door and guard;
• the site position, proposed supply distance and cable path;
• available electricity supply and spare distribution capacity;
• desired local or remote-control functions.

If uncertain, send the model, plan and site photographs together. The Contact page handles product-specific enquiries.

Interpreting electrical information for the heater

Sales summaries often state only heat output, which is insufficient for electrical design. Use the rating plate, connection diagram and installation instructions for the exact version.

Item shown	Use during design
Nominal power	Electrical input under the stated operating conditions.
Nominal voltage and system	Specifies the intended supply and connection arrangement.
Rated current	Informs conductor, switching and protection selection alongside installation method and manufacturer guidance.
Phases and terminal layout	Sets out the allowed connection; output alone cannot be used to infer it.
Controller arrangement	Shows whether separate controls, switching equipment and sensors are needed.
Environmental rating and permitted position	Limits where the component may be installed.
Wiring specification	Can state conductor dimensions, heat resistance and terminal conditions.

Do not derive current from advertised wattage alone. Internal wiring, phases, controls and the equipment’s market-specific version must all be considered.

Circuit design, protection and safe isolation

Because a sauna heater imposes a substantial sustained load, its design will normally consider a dedicated circuit. From the equipment documents, existing installation and Irish requirements, the contractor determines isolation, residual-current and other protection and decides whether the project is Restricted Electrical Works.

A matching plug does not prove that a socket circuit suits the heater. Extension leads, portable reels and temporary garden supplies cannot replace a designed connection for a fixed sauna heater.

Points to discuss with the contractor

• Can the incoming supply and distribution carry the extra load?
• What supply and connection does this heater require?
• Which cable suits the length, route and installation method?
• Which protective devices suit the equipment and site conditions?
• Where may joints and final connections be located?
• How will the system be isolated and secured against reconnection?
• Are trenches, ducts or distribution-board changes needed?
• Which tests, certificates and handover documents will be supplied?

Available supply and distribution design

A spare board module does not prove adequate capacity. Check the service connection, upstream protection, distribution, cable routes, coincident demand and existing major loads, such as cooking appliances, instantaneous water heating, heat pumps, vehicle charging and garden equipment.

Include the sauna in the wider garden-services plan. Lighting, outdoor sockets, pumps, powered pergolas and a future garden building may require separate circuits. Forward planning can reduce later excavation and alterations, but never justifies oversizing the sauna’s protective devices.

Routing cables through changing temperatures

The electrical route can pass through soil, exposed outdoor areas, a service space and finally the hot cabin. Wiring suitable for a cool section may be unsuitable beside the heater terminals or close to the ceiling.

Agree the route ahead of base construction and assembly. Account for damp, sunlight, impact risk, bend limits, penetrations and separation between sensor and power wiring. Keep cables away from hot surfaces, cutting edges and positions intended for later fixings.

Minimise holes through external walls and roofing. Where an opening is unavoidable, detail it so rain cannot enter the wall build-up. Unused holes need a compatible closure rather than an improvised filler.

Controllers, sensing and operation from a distance

Controls may sit on the heater or form a separate arrangement. For the latter, verify that the user panel, switching unit, sensors and safety components belong to the documented system. A similar plug shape or terminal strip does not establish compatibility.

Sensor location is prescribed for the relevant appliance. It governs temperature regulation and protective shutdown. Shifting the sensor into a cooler zone to make the cabin run hotter interferes with those functions and risks excessive temperatures.

Remote or app starting may need extra safeguards. Before activation, the system must ensure that no towels, cleaning equipment or other objects are on or near the heater. A general smart-home relay cannot replace the manufacturer’s controls.

Earthing, bonding and electric-shock protection

Assess protective conductors, earthing, bonding and residual-current protection as one installation. Do not connect every metal component automatically. The contractor decides which conductive parts are included and verifies the protective measure by testing.

Timber construction does not remove electrical risk. Outdoor exposure, perspiration, damp and elevated heat place additional demands on wiring and equipment. Unauthorised alterations after commissioning may defeat safeguards that were previously verified.

Heater clear space and guarding

Distances from the selected heater to the finished timber, seating, ceiling, doorway and neighbouring components must follow its own installation booklet. Do not substitute remembered dimensions or information taken from a heater that merely looks similar.

A guard may reduce accidental contact, provided it leaves the necessary airflow and clearance intact. Secure it firmly and never treat it as storage or a drying rail. In layout comparisons involving HC 180, HC 225 and HCF 225, include the protected heater zone rather than comparing seating space alone.

A workable order of decisions before buying

1. Choose the cabin configuration: Confirm construction, interior, glazing, door and heater position. See Choosing a timber, barrel or garden sauna for an overview.
2. Examine the location: Check access, base, drainage, boundaries and local constraints. The article on whether planning permission may apply to garden structures offers general guidance; ask the relevant Irish planning authority about the specific sauna and site.
3. Seek model-specific heater advice: Give the supplier room data and required functions.
4. Collect the appliance paperwork: Provide label data, connection diagram and instructions for electrical planning.
5. Arrange an electrical site review: Have a Registered Electrical Contractor assess the installation, cable route and protection.
6. Build a separated budget: Budget separately for cabin, heater, excavation, supply, board changes and commissioning.
7. Verify the package contents: Order only after confirming all included control, sensor and connection parts.
8. Plan the work sequence: Schedule cables needed before foundations or assembly separately from post-build connections.

For the purchasing stages, refer to How to order. Delivery access and other practical arrangements are covered under Purchasing and delivery .

Checking heater equipment on arrival

Before installation, check for damage, confirm each model reference and compare the heater label, controller, sensors, panel, switching unit, fixings, stones and documents with the order.

Do not repair damaged terminals, crushed sensor wires or distorted housings. Keep labels and packaging while the issue is resolved. Check the seller’s commercial cover under Warranty , keeping it separate from statutory remedies.

Checks for installation, testing and handover

• cabin fully assembled to its instructions;
• delivered heater and electrical version reconciled with the design;
• appliance fixed securely and specified separation distances confirmed;
• guard secured correctly, if specified;
• stones checked, cleaned and loosely arranged as instructed;
• sensors and temperature-safety devices fixed at their prescribed points;
• power and sensor cables separated, routed and protected;
• terminals checked against manufacturer instructions;
• protective conductors, devices and isolation checked;
• tests completed, recorded and, where applicable, certified by the Registered Electrical Contractor;
• ventilation openings clear and unobstructed;
• initial warm-up observed throughout;
• operating controls and protective shutdown functions demonstrated;
• users instructed in operation, isolation and fault response.

Initial heating may release manufacturing or material odours; ventilate as instructed. Heavy smoke, arcing, scorching smells or repeated protective-device operation require immediate shutdown and professional investigation.

Ongoing care and diagnosing faults

Before each session, clear the heater area. Periodically inspect the stones, visible wiring, fixings, guard, ventilation and controls. Crumbling or tightly packed stones can restrict airflow and strain the elements; maintain them as the heater instructions direct.

Do not keep resetting protection that has operated. Moisture, damaged wiring, a poor connection or a defect in the controls or heating elements could be responsible. The fact that the cabin still becomes warm does not establish electrical safety.

Record the time, operating stage, error codes and unusual observations to help the contractor and service team. Only suitably qualified people may open housings, controls or terminal compartments, after safe isolation.

Fitting the sauna into the full garden layout

Good positioning involves more than reaching the electricity supply. Consider privacy, paths, drainage, prevailing weather, lighting and room for later maintenance. An HCF 300 or LC 225 belongs on the site drawing with its real approach and service clearances marked.

Where the same scheme contains a pergola, consult the article Choosing a bioclimatic pergola when dividing the garden into usable zones. Growing structures have different moisture and temperature needs, explained in Managing greenhouse temperature and humidity and How polycarbonate affects insulation.

Broader design inspiration is available in Irish garden trends. Product areas can also be explored through Greenhouses and conservatories and Garden buildings . The technical article library is collected under Practical information.

Questions commonly raised before installation

Is an ordinary household socket suitable for an electric sauna heater?

Appearance alone cannot show that a socket is suitable. Many heaters need a different supply and dedicated circuit. The rating plate and connection diagram provide the starting details; a Registered Electrical Contractor should assess the existing installation and protection, even for a small unit.

How should heater capacity be selected?

Consider finished internal volume, room construction, glazing, poorly insulated surfaces, shape and the manufacturer’s sizing method. Barrel length or seat count alone cannot determine the heater.

Should the heater be ordered before the electrical survey?

First shortlist a heater and obtain its technical documents. Buy only after confirming electrical feasibility and the full system contents; this helps avoid an unsuitable version or unexpected alterations.

Does advertised wattage determine the protective device?

No. Voltage, phases, rated current, connection method, cable conditions and manufacturer limits also matter. The contractor coordinates wiring and protection with the existing installation.

Are controls incorporated into every sauna heater?

No. Controls may be integral, while other heaters need external sensors, a panel and separate switching unit. Confirm compatibility and package contents before ordering.

Can the sensor be positioned where it gives my preferred reading?

No. Its designated position forms part of temperature regulation and protective shutdown. Arbitrary placement changes those functions. Any later move should be made only where the equipment documentation permits it.

May home automation switch the sauna heater?

Only through an expressly supported interface with every required safeguard. A general smart relay cannot replace the approved controller, interlocks or remote-start protection.

What action is appropriate if protection operates during warm-up?

Switch off the heater and do not repeatedly reset the device. Record the operating stage and any fault message. A Registered Electrical Contractor or authorised service provider should inspect the connection, cable, protection, elements and possible moisture.

Is electrical preparation relevant to a wood-fired sauna?

Yes, where lighting, sockets, controls or other electrical equipment are planned. The stove creates no electrical heating load, yet outdoor wiring and moisture protection still matter. Competent assessment must also cover siting, combustion air, flue discharge, fire safety and carbon-monoxide protection under its instructions and applicable Part J guidance.

Can the electrics be finished before cabin assembly?

Buried cable, ducts and some distribution work may be prepared early. Verify final heater, sensor, panel and connection positions against the assembled cabin; permanent connection and testing follow assembly.

What records are worth retaining?

Keep the invoice, order confirmation, label details, installation and operating instructions, connection diagram, test records, control settings and photos of concealed cable routes. They aid servicing, spares and later alterations.

Who is responsible for the final electrical design?

The heater maker sets equipment requirements; the sauna supplier provides room and cabin data. The contractor assesses the property, site and Irish requirements. Online guidance cannot decide the final connection.
